Phoenix Contact 0800306 Shrink sleeve WMS 19,1 (EX30)R YE
Normally In Stock
Code: 81966
WMS 19,1 (EX30)R YE WMS 19,1 (EX30)R YE Phoenix Contact 0800306 yellow Roll Shrink sleeve
Condition: New
Usually ships Same Day or Next Day$353.05
Sale Price
$294.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

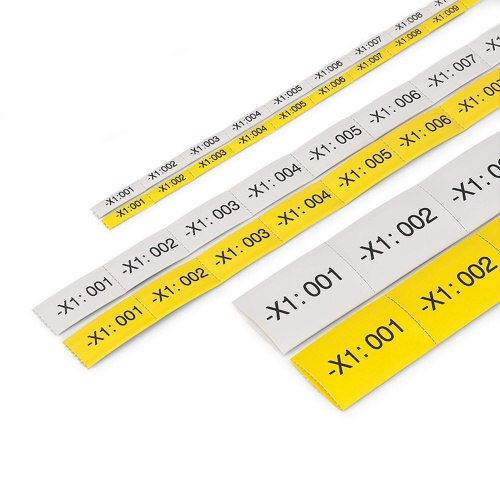

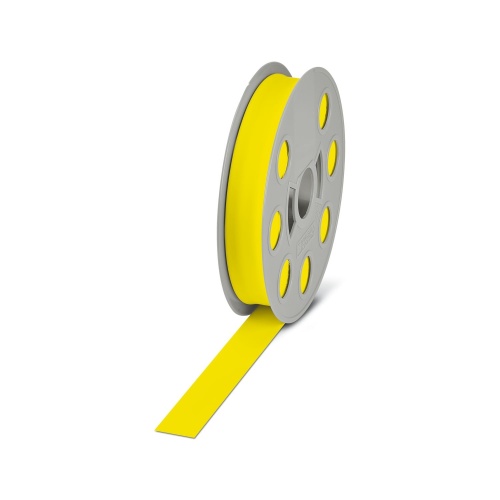

Phoenix Contact 0800306 A shrink sleeve can be labeled with various thermal marking systems, including THERMOMARK's E.300 and ROLLMASTER series, as well as their ROLL X1, ROLL 2.0, W, and X1.2 models, featuring a cable diameter range of 6.4 to 19.1 mm, available in unperforated slide-on mounting options with individual labels on each unit, having a roll length of 20 meters and text fields measuring 30 mm in height and 20000 mm in width.
Specifications
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Color
Yellow
Marking Width
30 mm
Marking Printing System
THERMOMARK W
Manufacturer
Phoenix Contact
Marking Lettering Field Size
Continuous X 30 mm
Component
Wire Heatshrink Label
Features
High diameter coverage with a shrink ratio of 3:1
High flexibility, as individual marker lengths ranging from 3.45 mm ... 2000 mm (0.14" ... 78.7") can be realized in combination with the cutter and perforation cutter
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position

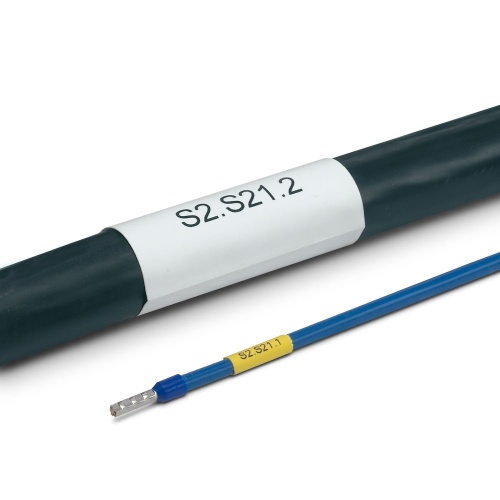

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects

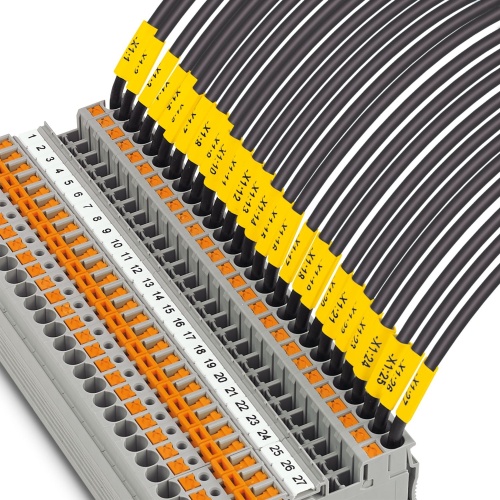

Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
