Phoenix Contact 0864102 Shrink sleeve WMS-2 HF 12,7 (EX20)RL BU
Normally In Stock
Code: 81956
WMS-2 HF 12,7 (EX20)RL BU WMS-2 HF 12,7 (EX20)RL BU Phoenix Contact 0864102 blue Roll Shrink sleeve
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$893.52
Sale Price
$744.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

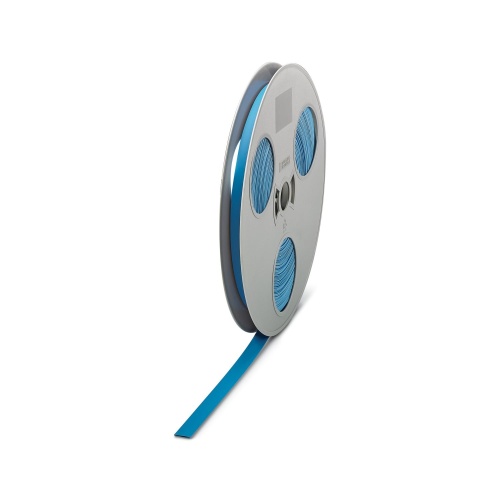

Phoenix Contact 0864102 The shrink sleeve features a blue, unlabeled color scheme but can be re-labeled with several THERMOMARK brands including E.300/D and W, RollMaster 300/600, Roll X1, and others. The sleeve has a specific cable diameter range of 6.4 to 12.7 mm, is unperforated, has a slide-on mounting type, can accommodate one individual label, measures 80 meters in length, features a text field with dimensions of 20mm height and 80000mm width.
Specifications
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Width
20 mm
Marking Printing System
THERMOMARK W
Marking Color
Blue
Manufacturer
Phoenix Contact
Marking Lettering Field Size
Continuous X 20 mm
Component
Wire Heatshrink Label
Features
High diameter coverage with a shrink ratio of 2:1
High flexibility, as individual marker lengths ranging from 3.45 mm ... 2000 mm (0.14" ... 78.7") can be realized in combination with the cutter and perforation cutter
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position

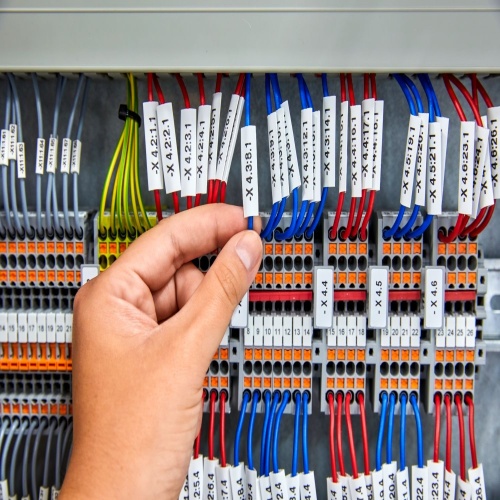

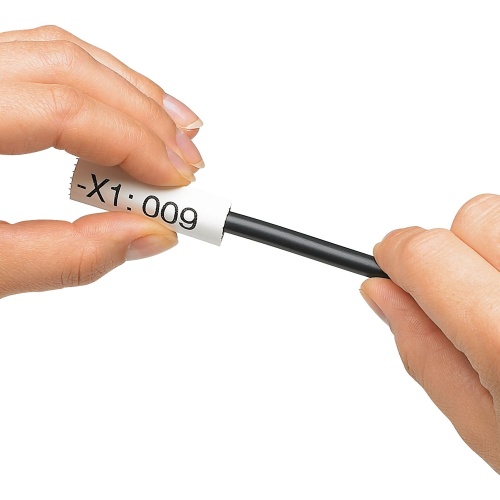

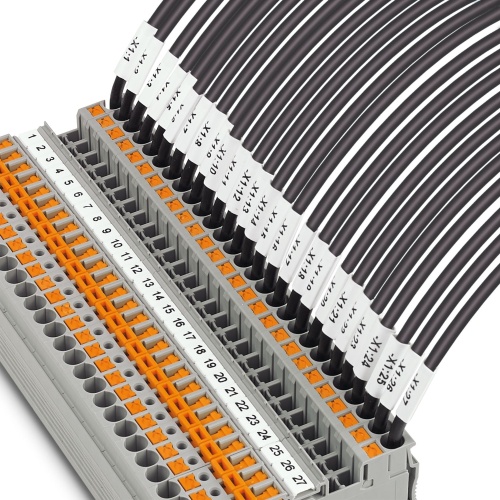

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Widely used and proven worldwide in the railway industry
