Phoenix Contact 0800331 Shrink sleeve WMS 6,4 (EX10)RL YE
Normally In Stock
Code: 81936
WMS 6,4 (EX10)RL YE WMS 6,4 (EX10)RL YE Phoenix Contact 0800331 yellow Roll Shrink sleeve
Condition: New
Usually ships Same Day or Next Day$656.51
Sale Price
$547.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

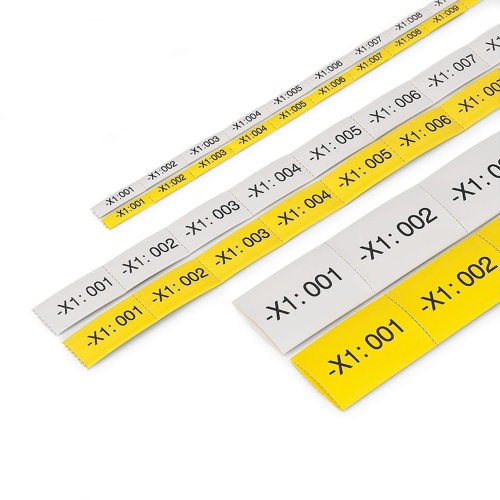

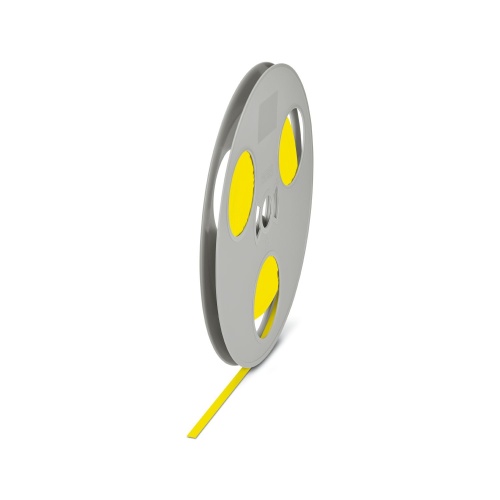

Phoenix Contact 0800331 A shrink sleeve is a yellow roll that can be labeled with various THERMOMARK products, including the E.SLEEVE, ROLLMASTER 300/600, and X1. The cable diameter range for automated processing is between 2.1 to 6mm. Individual labels have one label per roll, with a length of 100 meters and text fields measuring 10mm in height and 120000mm in width.
Specifications
Marking Printing System
THERMOMARK ROLLMASTER 300-600
Marking Printing System
THERMOMARK X1.2
Marking Print Medium
Roll
Marking Mounting Type
Slide-On
Marking Color
Yellow
Marking Width
10 mm
Marking Printing System
THERMOMARK W
Manufacturer
Phoenix Contact
Marking Lettering Field Size
Continuous X 10 mm
Component
Wire Heatshrink Label
Features
High diameter coverage with a shrink ratio of 3:1

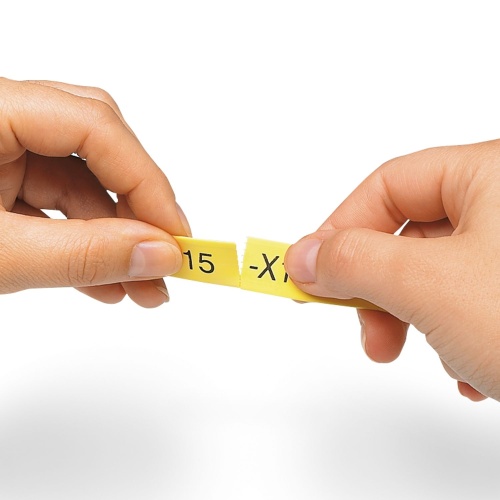

High flexibility, as individual marker lengths ranging from 3.45 mm ... 2000 mm (0.14" ... 78.7") can be realized in combination with the cutter and perforation cutter
As an option, the sleeves can be shrunk by applying heat manually to fix the sleeve in position

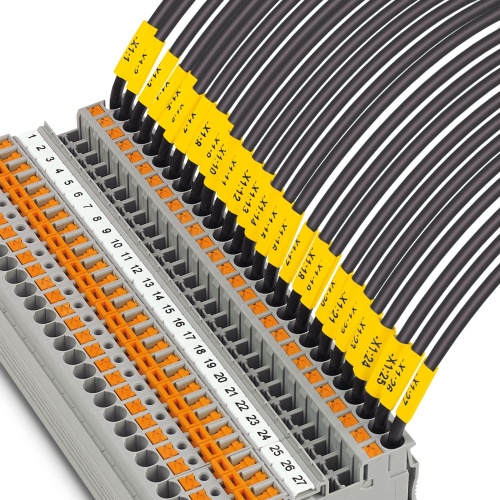

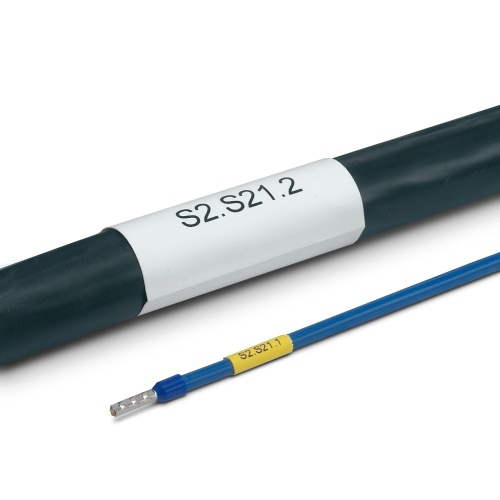

Permanent and captive identification of single-core wires, wires, cables, pneumatic hoses, and other cylindrical objects
Widely used and proven worldwide in control cabinet and machine building, the oil and gas industry, and the railway industry
