Code: 818467
Omega HSTH-44034-40-PP Flexible Thermistor Sensor
Normally In Stock
Omega HSTH-44034-40-PP Flexible Thermistor Sensor
Condition: New
Usually ships Same Day or Next Day$169.46
Sale Price
$141.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

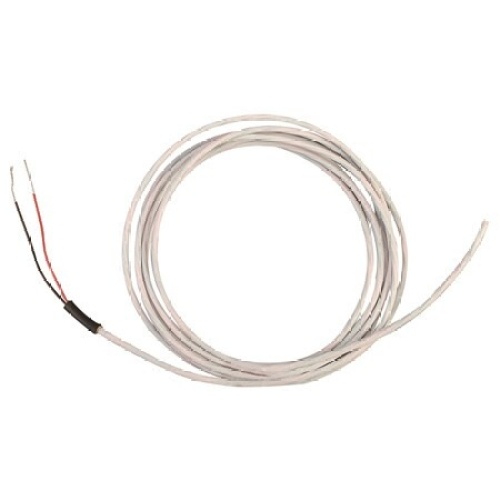

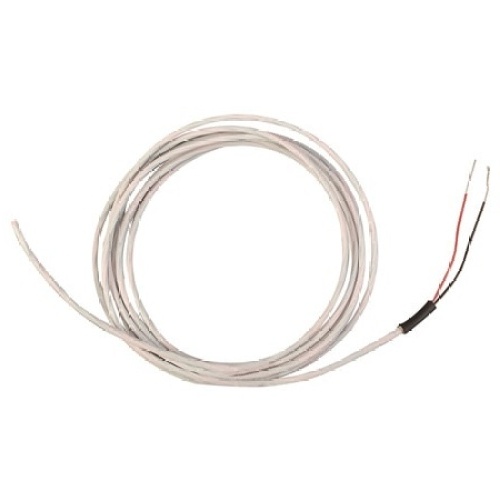

Flexible Thermistor Sensor, Hermetically Sealed, Phone Plug, 1 m (40 ") Cable, 5000 Ω @ 25 °C, Sealed Tip, HSTH-44000, Each
Specifications
Manufacturer
Omega Engineering
(Instrument-Sensor) Type
Thermistor
(Instrument-Sensor) Temperature Range
-80 °C - 150 °C
Component
Flexible Thermistor Sensor
Features
Available in 3 Standard Resistance Values: 2252 Ohms, 5000 Ohms or 10,000 Ohms at 25°C.
Interchangeability: ± 0.1°C Between 0 and 70°C.
Temperature Range -80 to 150°C (-110 to 302°F)
Available in Standard Lengths of 40, 80 and 120 Inches (1, 2 and 3 Meters).
Accuracy± 0.1 °C (± 0.18 °F)
InsulationPFA
Insulation Note1, 2, or 3 m (40, 80, or 120") of 26 AWG Stranded PFA Insulated and Jacketed Cable with Stripped Leads Standard
Number of Wires2
Probe TypeHermetically Sealed Thermistor Sensors
Process Temperature, Max150 °C
Process Temperature, Min-80 °C
Temperature Sensor TypeThermistor
Tip Diameter, Max0.1 in
Tip Diameter, Min0.09 in
Wire Gauge26 AWG
Wire TypeStranded
