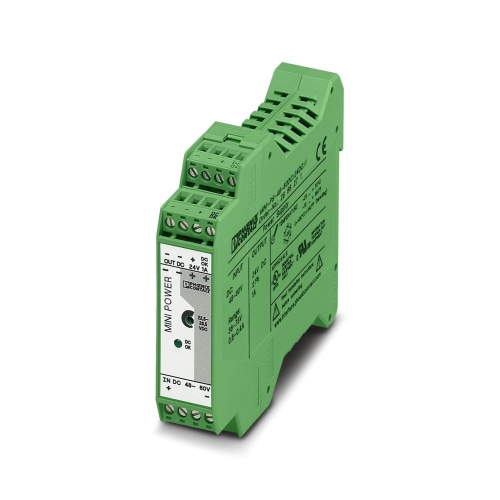

Phoenix Contact 2866271 DC/DC converter MINI-PS- 48- 60DC/24DC/1
Normally In Stock
Code: 816
MINI-PS- 48- 60DC/24DC/1 Phoenix Contact MINI-PS- 48- 60DC/24DC/1. DC-DC converter(Class 1 Div 2) 1A-5A with 48-60Vdc input and 24 VDC output. Temperature range of -13 F to 158 F. Din rail mount. (3.9"H x .89"W x 4.21"D).
Condition: New
Usually ships Same Day or Next Day$341.04
Sale Price
$284.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2866271 The recommended component to include in new systems is a primary-switched MINI DC/DC converter designed for DIN rail mounting, capable of accepting an input voltage between 48-60V DC and producing a regulated 24V DC output at a current capacity of up to 1A.
Specifications
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
24 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
1 Amp
Manufacturer
Phoenix Contact
Line
MINI
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
36 VDC - 75 VDC
Component
DC-DC
Features
Support conversion to various voltage levels
Constant voltage: output voltage regenerated even at the end of long cables
Electrical isolation: for setting up independent supply systems
Downloads
Phoenix 2866271 CAD data International.dxfPhoenix 2866271 CAD data International.stpPhoenix 2866271 CAD Drawing.zipPhoenix 2866271 Data Sheet English.pdfPhoenix 2866271 EPLAN Macro International.z13Phoenix 2866271 EPLAN Macro International.zipPhoenix 2866271 Manual English.pdfPhoenix 2866271 Manufacturers declaration English.pdfPhoenix 2866271 Manufacturers declaration International-2.pdfPhoenix 2866271 Manufacturers declaration International-3.pdfPhoenix 2866271 Manufacturers declaration International.pdfPhoenix 2866271 Package Slip International.pdfPhoenix 2866271 Product Information English.pdfPhoenix 2866271 Spec Sheet.pdfPhoenix 2866271 Tender Text English.zipPhoenix 2866271 User Manual.pdfPhoenix 2866271 Various English.pdf
