Code: 804387

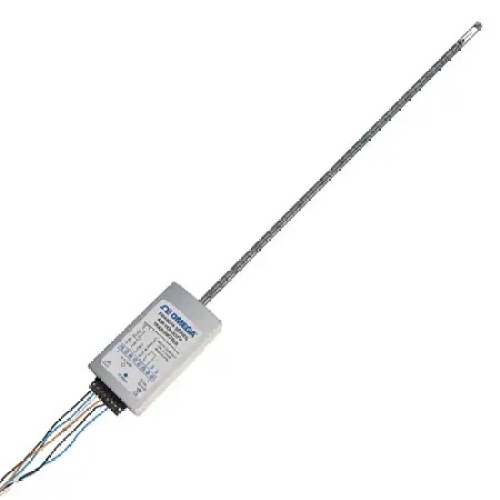

Omega FMA903R-MA-S Air Velocity Transmitter
Normally In Stock
Omega FMA903R-MA-S Air Velocity Transmitter
Condition: New
Usually ships Same Day or Next Day$936.53
Sale Price
$780.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Air Velocity Transmitter, Hot Wire, 15 Vdc to 24 Vdc, 0 FPM to 2000 FPM, ± 15 FPM Accuracy, 4 mA to 20 mA, 1/4 " x 3-3/4 " (DxL), Remote Probe, SPST Relay, FMA903R Series, Each
Specifications
Component
Air Velocity Transmitter
Manufacturer
Omega Engineering
Features
Air Velocity Range Up to 10,000 FPM (50.8 m/sec)
± 15 FPM Full Scale Accuracy
Hot Wire Air Velocity Sensor Design
Two Sensor Probe Configurations: Fixed Mount and Remote Probe
Accuracy± 2 %, ± 5% with transitional flow
Accuracy Detail2% of FS or 15 FPM whichever larger
Air Velocity, Min0 m/h
Alarm Deadband5% of FS
Alarm IndicationRed LED
Alarm Indication NoteRed LED on the back plate
Cable Length15 ft
Contact Rating10A @ 24 Vdc
Enclosure Temperature, Max50 °C
Enclosure Temperature, Min0 °C
Form factorField Mount
Height3.5 in
High Alarm Set PointAdjustable from 0 to 100% of air flow range
Length2 in
MaterialsStainless Steel
Number of Sensors2
Operating Temperature, Max93 °C
Operating Temperature, Min-40 °C
Probe Diameter0.25 in
Response Time250 ms
Supply Current200 mA
Supply Power Note15 to 24 Vdc @ 200 mA
Supply Voltage15 to 24 Vdc
Switch NoteRelay: One 12V SPST NO relay
Switch TypeSPST
Temperature Accuracy± 0.5%
Temperature Sensor TypeRTD
Weight160 g
Width1.25 in
