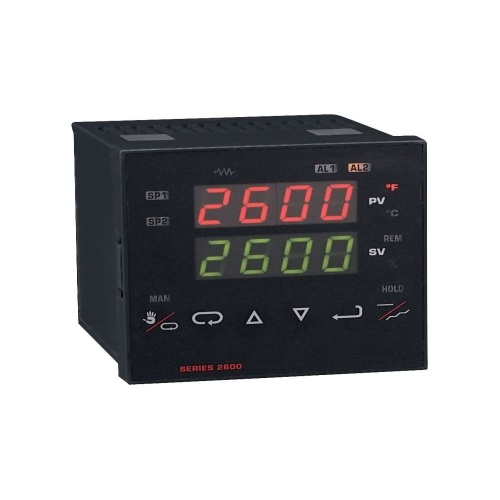

Series 2600 Temperature/Process Controllers set a new standard for quality, versatility, ease-of-use and value

While they include a high level of standard features, many function setup items appear in the control menu only when the function is selected, so you don’t have to wade through unnecessary items

Units feature a universal input for thermocouple types J, K, E, T, L, N, B, C, S & R

RTDs 100Ω Plt

NIST, 100Ω Plt

DIN, 120Ω Ni Industrial, 1000Ω Plt

DIN

differential input (-10 to +10 mV DC) and process input (0 to 20 mA DC, 0 to 10 VDC)

A standard 24 Volt isolated, regulated power supply is included to operate most standard 4-20 mA transmitters

Standard features include Self-Tune, Fuzzy Logic, fully adjustable PID, Auto/Manual control with bumpless transfer and front panel activation key, percent output indication, peak and valley indication, loop break protection and indication

For process inputs, the display is fully programmable from -1999 to +9999 with selectable decimal point location

Most thermocouple and RTD inputs can show whole or tenth degree displays

The Series 2600 is available with single or dual setpoint outputs and can be programmed for on-off, PID or heat/cool or latching alarm

All outputs are isolated from the inputs

Outputs include 10 Amp relay, and 0-20 mA DC (scalable).
