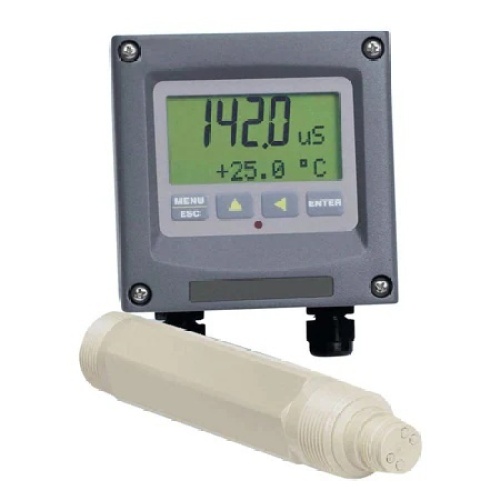

Omega CDTX-45-115VAC-R2 Water Quality transmitter
Normally In Stock
Code: 801828
Omega CDTX-45-115VAC-R2 Water Quality transmitter
Condition: New
Usually ships Same Day or Next Day$2135.54
Sale Price
$1779.62
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Conductivity Meter/Transmitter, 2-Wire, Isolated, 0 μS to 2000 μS, 115Vac/230 Vac, Dual 4 mA to 20 mA, PEEKTM Sensor Body Construction, Each
Specifications
Manufacturer
Omega Engineering
Component
Water Quality Transmitter
Features
PEEK Sensor Body Construction
4-Electrode Sensor Type
Electrode Coating Rejection Diagnostic
Universal Mounting Configurations
Accuracy± 0.3 %
Accuracy Detail0.3% of span
Additional Features 1Sensor
Measurement TypeConductivity
Repeatability0.3% of span
Sensitivity0.05% of span
Stability0.001
Stability Note0.1% of span per 24 hours, non-cumulative
Supply Power Effects± 0.05% span
Temperature Drift0.03% of span/°C
Temperature Range: -5 to 95°C (23 to 203°F)
Pressure Range: 0 to 100 psig
Maximum Flow Rate: 3 m (10’) per second
Sensor to Transmitter Distance: 914 m (3000’)
Warm Up Time7 sec
