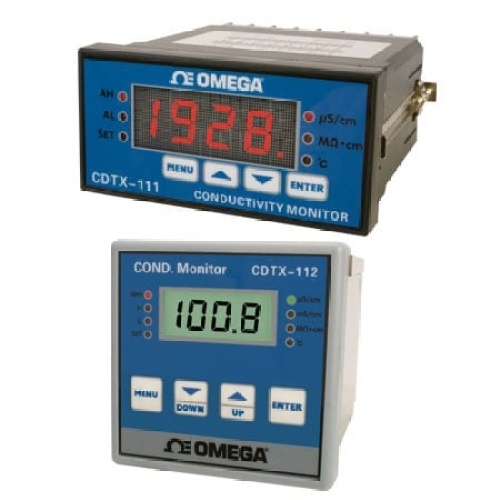

Omega CDTX-112 Water Quality controller
Normally In Stock
Code: 801750
Omega CDTX-112 Water Quality controller
Condition: New
Usually ships Same Day or Next Day$813.20
Sale Price
$677.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Conductivity & Temperature Monitor & Controller, 0 μS/cm to 1999 μS/cm, 4 mA to 20 mA, Relays, 1/4 " DIN Panel Mount, Economical, Each
Specifications
Manufacturer
Omega Engineering
Component
Water Quality Controller
Features
On/Off Relay Outputs
Economical
Automatic or Manual Temperature Compensation
Selectable Zero and Span Analog Output
Accuracy± 1 %
Additional Features 11/4" DIN, Sensors Sold Separately
Altitude,Max3000 m
Conductivity Measurement0 to 999.9 μS/cm, 0 to 9999 μS/cm, 0 to 100mS/cm, 0 to 600 mS/cm
Cutout Dimensions92 × 92 mm
Display Size13 mm (0.51 in)
Display TypeLCD
Enclosure RatingsIP54
Frequency50/60 Hz
Height96 mm
Impedance750 Ω
Length110 mm
Mounting OrientationPanel Mount
Number of Relays2
Operating Humidity5 to 95% RH
Operating Range NoteResistivity: 0 to 18 MΩ or 0 to 19.99 μS/cm
Operating Temperature, Max55 °C
Operating Temperature, Min-10 °C
Output DetailType: Isolated 4 to 20 mA
Range: Selectable zero and span
Accuracy: ±0.02 mA
Process Temperature, Max0 °C
Process Temperature, Min100 °C
Relay Note2 programmable , 10 A
Control Type: On/off
Relay Set Point Hysteresis: User programmable
Resolution0.01 to 0.01 mS/cm
Temperature: 0.1°C (32.1°F)
Temperature Accuracy± 0.2 °C
Weight650 g
Width96 mm
