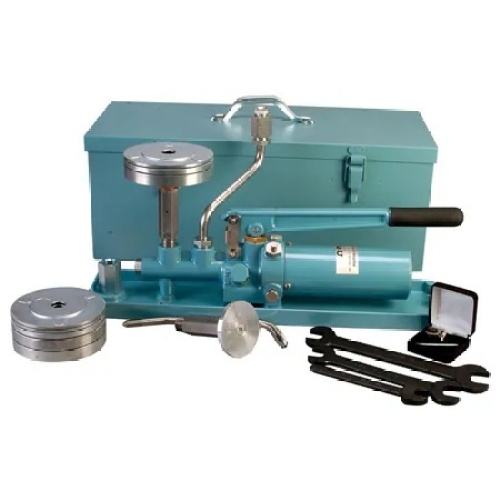

Omega DWT1305D-100 Pressure Calibrator
Normally In Stock
Code: 801696
Omega DWT1305D-100 Pressure Calibrator
Condition: New
Usually ships Same Day or Next Day$17542.30
Sale Price
$14618.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Hydraulic Precision Deadweight Tester, Gauge Type, Bench Style, 15 psig to 75 psig/2000 psig to 10000 psig, ± 0.1 % Accuracy, Pressure Source & Pressure Reference, DWT1305 Series, Each
Specifications
Manufacturer
Omega Engineering
Component
Pressure Calibrator
Features
Easy-to-Use Two-Stage Hydraulic Pump
Two Interchangeable Piston/Cylinder Assemblies
Vernier Screw Adjustment for Pressure Settings
Portable, Rugged Carrying Case Provided
Case MaterialAluminum alloy
Construction DetailsPiston and Cylinder Material: Stainless steel
Weights Material: Non-magnetic die-cast zinc alloy, NBS traceable
“O” Rings: Standard Buna-N
Reservoir Volume: Approximately 0.7 liter (1.5 pints)
Low Piston Value: 5
High Piston Value: 25
Number of Weights by Value: 1
Form factorBenchtop
FunctionsPressure Source & Pressure Reference
Operating FluidSAE 20 automotive or machine oil
Operating Pressure, Max10000 psi
Operating Pressure, Min15 psi
Pressure Accuracy± 0.1 %
Pressure TypeGauge
Pump TypeHydraulic
