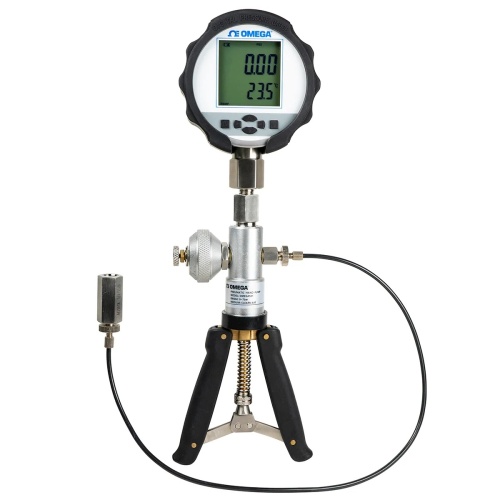

Omega DPG210-005G-KIT Pressure Calibrator
Normally In Stock
Code: 801690
Omega DPG210-005G-KIT Pressure Calibrator
Condition: New
Usually ships Same Day or Next Day$3146.40
Sale Price
$2622.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Pneumatic Pressure Calibration Kit, Gauge Type, Handheld Style, 0 psi to 5 psi, ± 0.05 % Accuracy, Pressure Pump & Reference, Selectable Units, Temperature Display, Each
Specifications
Manufacturer
Omega Engineering
Component
Pressure Calibrator
Features
Full kit with pressure gauge and hand pump for easy field calibration
High accuracy of 0.05% FS provides a reliable reference
Displays ambient temperature and maximum and minimum values of the data
5-digit primary display and secondary display
Additional Features 1Pressure Calibration Kits
Additional Features 2Selectable Units, Temperature Display
Battery life3600 hr
Battery Size and TypeAlkaline AA
Burst Pressure4x Full Scale
Calibration Temperature, Max40 °C
Calibration Temperature, Min0 °C
Case Material304 Stainless Steel
Display Size2.1"x 2.1" (55 x 55 mm)
Display Type5 Digit LCD
Enclosure RatingsIP65
Form factorHandheld
FunctionsPressure Pump & Pressure Reference
Media CompatibilityNon-corrosive Dry Gasses, Oil, Water
Operating Pressure, Min-15 psi
Operating Temperature, Max50 °C
Pressure Accuracy± 0.05 %
Process Connection Size1/4 in
Process Connection TypeNPT Male
Proof Pressure3X Rated Pressure from 0 to 100 psi, 2X Rated Pressure from 200 to 5000 psi
Stability±0.2%
Storage Temperature, Max60 °C
Storage Temperature, Min-20 °C
Temperature Accuracy± 0.5 °C
Weight10.25 lb
