Code: 801593

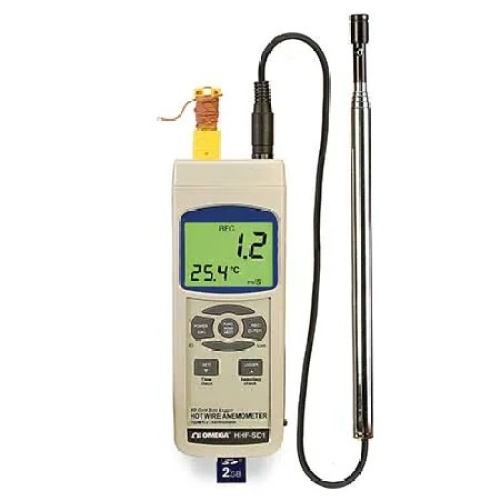

Omega HHEM-SD1 Anemometer
Normally In Stock
Omega HHEM-SD1 Anemometer
Condition: New
Usually ships Same Day or Next Day$763.96
Sale Price
$636.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Handheld Environmental Meter, 6 AA/Optional AC Adapter, 0 % to 85 %, 0 °C to 50 °C, 0 Lux to 20000 Lux, 0.4 m/s to 25 m/s Flow, 1 s to 1 hour, with LCD Display, Each
Specifications
Component
Anemometer
Manufacturer
Omega Engineering
Features
Multi-Function Probe Measures Air Speed, Temperature, Humidity, and Light Level
Surface Temperature and Sound Level (Optional)
Large Easy-to-Read Green Backlit LCD
Max and Min Readings with Hold Function
Accuracy± 2 %, ± 5% with transitional flow
Accuracy Detail± (2% + 0.2 m/sec), ± (2% + 0.8 km/hr), ± (2% + 0.4 mph), ± (2% + 0.4 knots), ± (2% + 40 ft/min) (%’s are of full scale)
Additional Features 19VDC adapter for a 110V power supply, Includes Sound level probe and plug adapter, Type K and Type J thermocouples, 20000 lux
Air Velocity, Min0.4 m/h
Air Velocity Noteair speed: 0.4 to 25 m/sec, 1.4 to 90 km/hr, 0.9 to 55.9 mph, 0.8 to 48.6 knots, 80 to 4930 ft/min
Battery Size and TypeAlkaline AA
Display TypeBacklit LCD
Form factorHandheld
Height5.31 in
Humidity Accuracy± (3% of rdg + 1% FS) for RH values >70% ± 3% of rdg for RH values <70%
Humidity Range0 to 85% RH
Length2.36 in
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Power Consumptionmax 40 mA
Process Temperature, Max50 °C
Process Temperature, Min0 °C
Sampling Time1 to 3600 sec
Supply Power Note6 Alkaline “AA” batteries or optional 9-VDC AC adapter
Temperature Accuracy± 0.5%
Temperature Sensor TypeThermocouple Type K
Weight515 g
Width1.3 in
