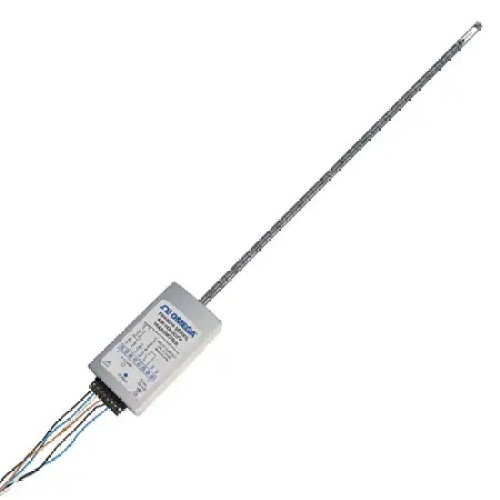

Omega FMA905R-MA Anemometer
Normally In Stock
Code: 801589
Omega FMA905R-MA Anemometer
Condition: New
Usually ships Same Day or Next Day$972.18
Sale Price
$810.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Air Velocity Transmitter, Hot Wire, 15 Vdc to 24 Vdc, 0 FPM to 10000 FPM, ± 15 FPM Accuracy, 4 mA to 20 mA, 1/4 " x 12 " (DxL), Remote Probe, SPST Relay, FMA905R Series, Each
Specifications
Component
Anemometer
Manufacturer
Omega Engineering
Features
Air Velocity Range Up to 10,000 FPM (50.8 m/sec)
± 15 FPM Full Scale Accuracy
Hot Wire Air Velocity Sensor Design
Two Sensor Probe Configurations: Fixed Mount and Remote Probe
Accuracy± 2 %, ± 5% with transitional flow
Accuracy Detail2% of FS or 15 FPM whichever larger
Air Velocity, Min0 m/h
Alarm Deadband5% of FS
Alarm IndicationRed LED
Alarm Indication NoteRed LED on the back plate
Cable Length15 ft
Contact Rating10A @ 24 Vdc
Enclosure Temperature, Max50 °C
Enclosure Temperature, Min0 °C
Form factorField Mount
Height3.5 in
High Alarm Set PointAdjustable from 0 to 100% of air flow range
Length2 in
MaterialsStainless Steel
Number of Sensors2
Operating Temperature, Max93 °C
Operating Temperature, Min-40 °C
Probe Diameter0.25 in
Response Time250 ms
Supply Current200 mA
Supply Power Note15 to 24 Vdc @ 200 mA
Supply Voltage15 to 24 Vdc
Switch NoteRelay: One 12V SPST NO relay
Switch TypeSPST
Temperature Accuracy± 0.5%
Temperature Sensor TypeRTD
Weight160 g
Width1.25 in
