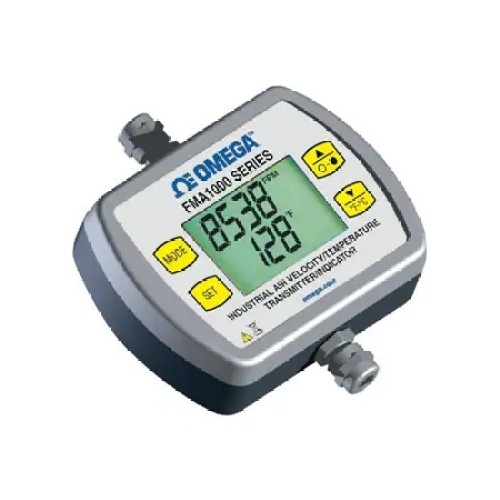

Omega FMA1002R-V2-S Anemometer
Normally In Stock
Code: 801489
Omega FMA1002R-V2-S Anemometer
Condition: New
Usually ships Same Day or Next Day$1819.54
Sale Price
$1516.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Air Velocity/Temperature Transmitter, 15 Vdc to 24 Vdc, 0 FPM to 5000 FPM, ± 1.5 % Accuracy, 0 Vdc to 10 Vdc, 1/4 " x 3-3/4 " (DxL), Remote Mount Probe, FMA1000 Series, Each
Specifications
Component
Anemometer
Manufacturer
Omega Engineering
Features
Measures Air Velocities up to 50.8 m/sec (1o,000 FPM)
Measures Air Temperature up to 93°C (199°F)
3 Different Sensor Probe Configurations
250 msec Response time, programmable up to 2 seconds
Accuracy± 1.5 %
Accuracy Detail1.5% full scale or 12 FPM whichever larger
Air Velocity, Min0 m/h
Alarm NoteHigh and low alarm voltage outputs, corresponding
to air velocity
Cable Length15 ft
Data InterfaceUSB
Display TypeBacklit LCD
Enclosure Temperature, Max50 °C
Enclosure Temperature, Min0 °C
Enclosure TypeNEMA Type 4X, IP65
Height4.5 in
Length3.5 in
MaterialsStainless Steel
Number of Sensors3
Operating Temperature, Max93 °C
Operating Temperature, Min-40 °C
Probe Diameter0.25 in
Process Temperature, Max121 °C
Process Temperature, Min-40 °C
Response Time250 ms
Response Time Note250 msec up to 2 seconds
Supply Current200 mA
Supply Power Note15 to 24 Vdc @ 200 mA
Supply Voltage15 to 24 Vdc
Temperature Accuracy± 0.5%
Temperature Sensor TypeRTD
Temperature Sensor Type NoteThree RTDs, 100 and 1000 Ω
Weight230 g
Width1.3 in
