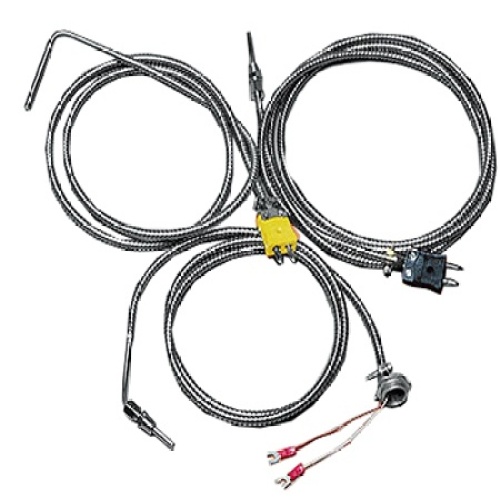

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Omega CF-090-J-2-60-2 COMPRESSION T/C ASSEMBLY
Normally In Stock
Code: 796883
Omega CF-090-J-2-60-2 COMPRESSION T/C ASSEMBLY
Condition: New
Usually ships Same Day or Next Day$89.81
Sale Price
$74.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Extruder Thermocouple Probe, 90 ° Angle, CM Fitting, 1/8 " NPT, STD CONN, J Type, 0 °C to 480 °C (32 °F to 900 °F), 0.187 " x 2 " Probe, 60 " Cable, 304 SS, Immersion, GND, CF, Each
Specifications
Manufacturer
Omega Engineering
Component
Thermocouple Probe
(Instrument-Sensor) Type
Thermocouple
(Instrument-Sensor) Temperature Range
0 °C - 620 °C
Features
3/16' Diameter Probe with Pressure Sealing 1/8' NPT Compression Fitting
Service Temperature to 480 °C (900°F) Except for Type T Thermocouple Stainless
A Wide Variety of Immersion Lengths, Styles and Mounting Arrangements Are Available
Flexible 0.275' Stainless Steel Cable (60' Standard)
Additional Features 2Dual Elements
Armored Cable Length, Max40 ft
Cable Diameter0.275 in
Cable MaterialStainless Steel
Color Code StandardANSI
Number of ConnectorsN/A
Number of Wires2
Probe TypeExtruders/Molding Thermocouple Probes
Process Connection Size1/8 in
Process Connection TypeNPT Male
Sheath Material304 Stainless Steel
Temperature Sensor TypeThermocouple
