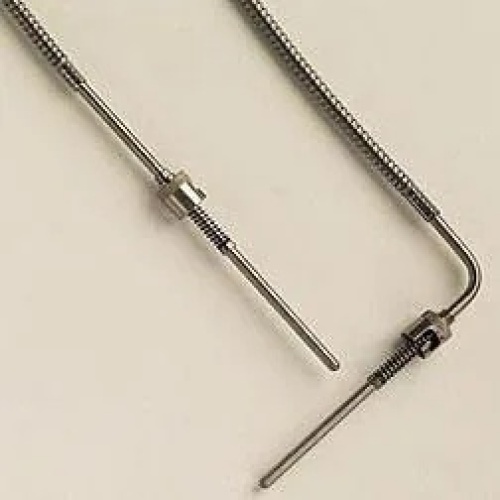

Omega BTTF-090-RTD-2-1/4-120-1 EXTRUDER RTD W/BAYONET FITTING
Normally In Stock
Code: 790443
Omega BTTF-090-RTD-2-1/4-120-1 EXTRUDER RTD W/BAYONET FITTING
Condition: New
Usually ships Same Day or Next Day$250.45
Sale Price
$208.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Extruder RTD Probe, Bayonet, Precision, Thin Film, Spade Lugs, -50 °C to 260 °C, Class B, 0.187 " x 2.25 " Probe, 120 " Cable, 3 Wires, 304 SS, Immersion, 100 Ω, 90 ° Angle, BTTF, Each
Specifications
Manufacturer
Omega Engineering
Component
RTD Probe
(Instrument-Sensor) Type
RTD
(Instrument-Sensor) Temperature Range
-50 °C - 260 °C
Features
Sensors Contain Precision 100 Ohm, Class B DIN Platinum Thin Film RTD Elements in 3-Wire Configurations.
Standard Temperature Range is -50C to 260ºC with PFA Insulated Cable. Optional High Temperature (500ºC) Fiberglass Insulated Cable Configuration is Also Available.
These Bayonet Style RTD Sensors Are Ideal for Plastic Process Machinery and Other Quick Connecting Applications
Probe is 304 SST with a Diameter of 3/16". Probe Length Varies with Model Number and All Models Include 60" of Flex Cable Standard
Additional Features 1High temperature, fiberglass cable, construction (500ºC)
InsulationPFA
Number of Wires3
Precision100 Ω
Probe Diameter0.1875 in
Probe TypeBayonet Style RTD Probes
Process Temperature, Min-50 °C
Sensing Element100 Ω Class “B” DIN Platinum Element
Sheath Material304 Stainless Steel
Temperature Probe StyleImmersion Probe
Temperature Sensor TypeRTD
Wire Gauge26 AWG
Wire TypeStranded
Downloads
Code: 790443
Omega BTTF-090-RTD-2-1/4-120-1 EXTRUDER RTD W/BAYONET FITTING
$250.45
Sale Price
$208.71
