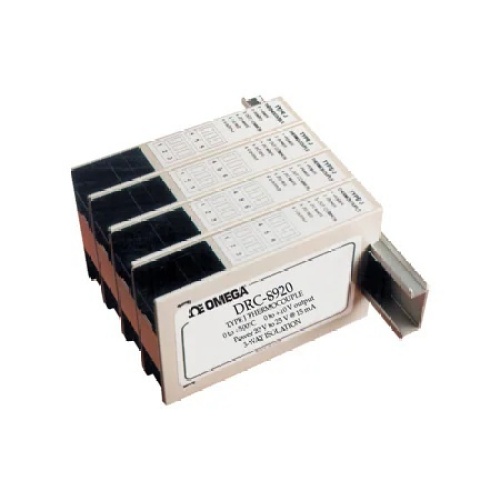

Omega DRC-8940 SC 100 OHM RTD IN/0-10V OUT
Normally In Stock
Code: 790202
Omega DRC-8940 SC 100 OHM RTD IN/0-10V OUT
Condition: New
Usually ships Same Day or Next Day$566.34
Sale Price
$471.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, DC Supply, 100 Ω I/P, 0 V to 10 V O/P, Process O/P Class, DRC-8900 Series, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Component
Signal Conditioner
Conditioner Output Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Supply Voltage
22-26 Vdc
Features
Models Available for Thermocouples, RTD’s, DC Voltage and Current Inputs
Isolated and Linearized
24 Vdc Power
0 to 10 V or 4 to 20 mA Outputs
CMRR85 dB
Height110 mm
Isolation700 V
Length77 mm
Load Resistance0 to 500 Ω
MaterialsPlastic
MountingDIN Rail Mount
Open_Circuit Voltage13 V
Operating Temperature, Max55 °C
Operating Temperature, Min0 °C
Output ValueProcess
Storage Temperature, Max80 °C
Storage Temperature, Min-40 °C
Supply Power TypeDC
Weight142 g
Width22.5 mm
