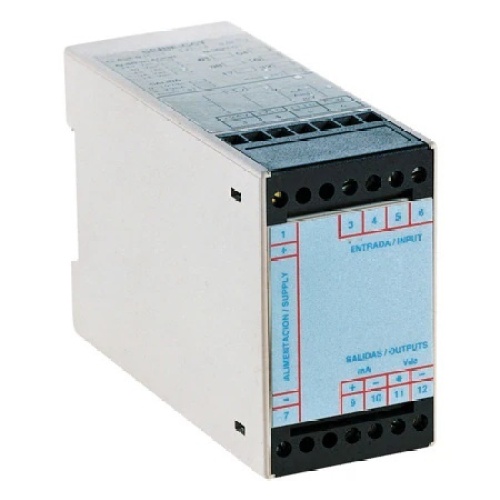

Omega CCT-23-0/1200C DIN RAIL SIGNAL CONDITONER CE
Normally In Stock
Code: 790188
Omega CCT-23-0/1200C DIN RAIL SIGNAL CONDITONER CE
Condition: New
Usually ships Same Day or Next Day$343.81
Sale Price
$286.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, AC Supply, 0 °C to 1200 °C I/P, 0 V to 10 V/4 mA to 20 mA O/P, Temperature I/P & Process O/P Class, CCT Series, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
4-20 Ma
Conditioner Supply Voltage
110 VAC
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Manufacturer
Omega Engineering
Features
Voltage, Current, Frequency, Resistance, Potentiometer, Thermocouple, RTD and Strain Gage Input Modules
Integrator Modules Convert Voltage or Current to Frequency
Loop Powered Galvanic Isolator Provides 2 kVeff Isolation Between Input and Output
Compatible with Standard 35 mm DIN Rail
ApprovalsCE, UL
Approvals NoteEnclosure: UL 94 V-1, Terminal Housing: UL 94-2
Bandwidth1.5 Hz (-3 dB)
Enclosure RatingsIP20, IP40
Height75 mm
Isolation2000 Vrms
MaterialsPolycarbonate, RAL 7032
MountingDIN Rail 46277 and EN 50022
Operating Temperature, Max60 °C
Operating Temperature, Min-10 °C
Output ValueProcess
Power Consumptionmax 1.5 VA
Serial NumberBreak Protection: Jumper selectable, upscale (>20 mA) or downscale (<4 mA)
Storage Temperature, Max80 °C
Storage Temperature, Min-30 °C
Supply Power Note110 Vac (standard)
220 Vac or 24 Vdc (optional) (±10% tolerance on all power supplies)
Wire Gauge14 AWG
