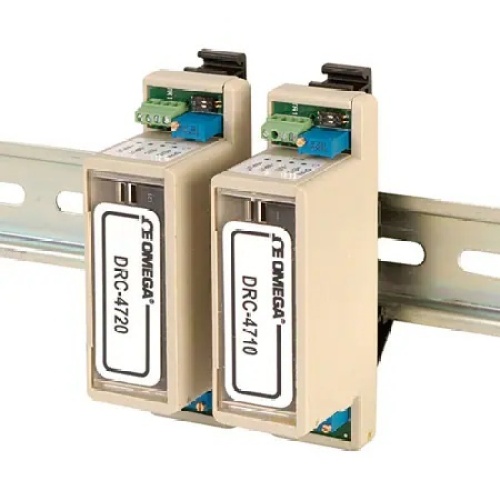

Omega DRC-4720 BRIDGE SIG COND 4-20MA
Normally In Stock
Code: 790159
Omega DRC-4720 BRIDGE SIG COND 4-20MA
Condition: New
Usually ships Same Day or Next Day$512.26
Sale Price
$426.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, DC Supply, 0 mV to 30 mV DC I/P, 0 mA to 20 mA O/P, Bridge, Strain I/P & Process O/P Class, Switch, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Supply Voltage
18-26 Vdc
Features
DIN Rail Mount
Bridge Input (Load Cell, Strain Gage) or Voltage Input
0 to 10 Vdc (DRC-4710) or 4 to 20 mA (DRC-4720) Output
Economical
BandwidthDC to 10 Hz
CMRR100 dB (dc)
Common Mode Voltage0 to 5V
Height96 mm
Input Noise Voltage0.3 µV pp typ (0.1 to 10 Hz)
Input Range NoteInput Range: 0 to 10 mV, 0 to 20 mV, 0 to 30 mV (dip switch selectable), Input Current (One 350 Ω Bridge): 40 mA
Input TypeVoltage
Length42 mm
Linearity±0.01%
MountingDIN Rail Mount
Number of Inputs1
OffsetInput Offset Voltage: ± 70 µV
Operating Temperature, Max55 °C
Operating Temperature, Min0 °C
Output DetailFixed Output: 10V ±1.0%
Output ValueProcess
Storage Temperature, Max80 °C
Storage Temperature, Min-40 °C
Supply Power TypeDC
Supply Voltage18 to 26 Vdc
Temperature Coefficient0.05%/°C
Temperature Coefficient NoteInput : 0.05%/°C
Input Offset Voltage Temperature Coefficient : 0.7 µV/°C
BRIDGE: 0.05%/°C
Output ( Total RMS gain temperature Coefficient : 0.007%/°C
Voltage Measurement Range0 to 30 mV dc
Voltage Output Range0 to 10 Vdc
Weight85 g
Width27 mm
Zero Setting Adjustable Range20% max output
