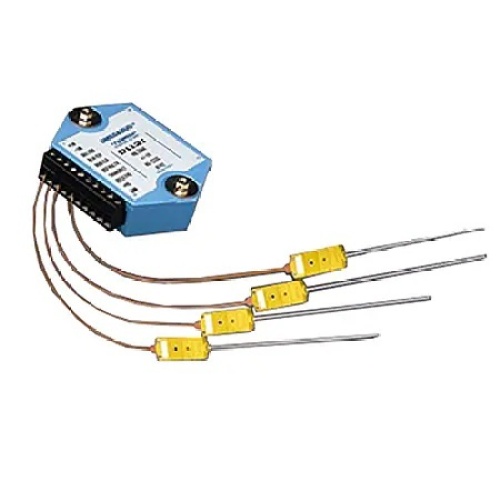

Four Channel Analog Input

Complete Sensor to RS-485 or RS-232C Interface

ASCII Format Command/ Response Protocol

500 V RMS Analog Input Isolation

Baud Rate300 to 115200

CalibrationAutozero, no adjustment pots

CMRR100 dB at 50/60 Hz

Common Mode VoltageInput to Output at 60 Hz: 500 V rms

Conversion Rate8 conversions/sec

Data Interface NoteData Format: NRZ asynchronous

1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum

Electrical ConnectionScrew Terminal

Height6.223 mm

Leakage Current< 2 μA

Length9.144 mm

MaterialsABS

MemoryEEPROM

MountingSpacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32

Number of Channels, InputAnalog: 4

Operating Temperature, Max70 °C

Operating Temperature, Min-25 °C

Relative Humidity0 to 95% RH non-condensing

Sampling Rate1 Hz (1 update/second)

Storage Temperature, Max85 °C

Storage Temperature, Min-25 °C

Supply Power TypeDC

Supply Voltage10 to 30 Vdc, 0.75 W

Width2.794 mm
