Omega HX85A HIGH TEMP (120C) RH TX
Normally In Stock
Code: 790138

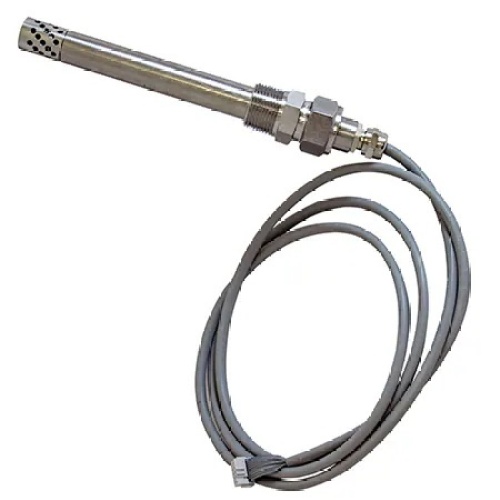

Omega HX85A HIGH TEMP (120C) RH TX
Condition: New
Usually ships Same Day or Next Day$1751.77
Sale Price
$1459.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Relative Humidity/Temperature/Dew Point Transmitter, 0 % to 100 %, -40 °C to 120 °C, -60 °C to 40 °C, 18 Vdc to 30 Vdc, 0 Vdc to 10 Vdc, RS232 Output, 6 " Cable, HX80A Series, Each
Specifications
Manufacturer
Omega Engineering
Conditioner Output Signal Range
0-10 Vdc
Conditioner Supply Voltage
18-30 Vdc
Component
Relative Humidity/Temperature/Dew Point Transmitter
Features
316 SS Housing
± 1% RH Accuracy
± 0.5°C (1.0°F) Temperature Accuracy
High Temperature [120°C (248°F)]
Accuracy± 0.5 °C (± 0.9 °F)
Cable Length1.8 m
Data InterfaceRS232
Data Interface NoteRS232C (bi-directional) to DTE device, 19.2 kilo baud, 8 bits data, 1 stop bit, no parity
FilterSinter Stainless Steel
Current, Max50 mA
Pressure LimitsUp to 690 psi
Pressure Note317 kg (700 lb) (47.6 bar)
Probe Diameter19 mm
Probe Length203 mm
Process Connection Size3/4 in
Process Connection TypeNPT Male and Female
Relative Humidity5 to 95%
Relative Humidity Accuracy± 1.0 % RH
Sensor MaterialStainless Steel
Supply Voltage18 to 30 Vdc
Temperature Measurement, Max120 °C
Temperature Measurement, Min-20 °C
Time Constant<15 sec, air flow dependent (for 66.6% response)
Weight0.9 kg
