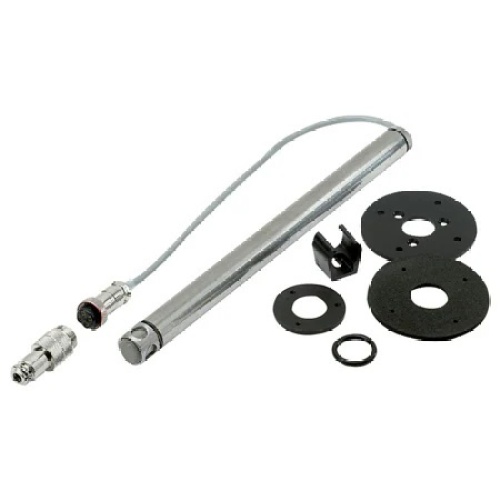

Omega HX94CW RH/TEMP TX W/ 3'FT LEADS
Normally In Stock
Code: 790131
Omega HX94CW RH/TEMP TX W/ 3'FT LEADS
Condition: New
Usually ships Same Day or Next Day$703.31
Sale Price
$586.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Relative Humidity/Temperature Transmitter, Duct Style, 0 % to 100 %, 0 °C to 100 °C, 6 Vdc to 30 Vdc, 4 mA to 20 mA, SS NEMA 4 Housing, 1 m Lead Wires, HX94 Series, Each
Specifications
Conditioner Output Signal Range
4-20 Ma
Component
Relative Humidity/Temperature Transmitter
Manufacturer
Omega Engineering
Conditioner Supply Voltage
6-30 Vdc
Features
± 2% RH Accuracy ± 0.6C Temperature Accuracy
Stainless Steel NEMA 4 Housing
Duct or Wall Mountable Mounting Hardware Included
4-20mA or 0-1Vdc Output Options
Accuracy±0.6 °C
Cable Length305 mm
Enclosure RatingsNEMA Type 4
Flange NoteRemovable, variable 25.4 to 227 mm (1 to 9") depth
70 mm (2.75") dia., duct hole 21 mm (0.812") dia. 4 mtg holes. 4 mm (0.156") dia. (for #6 sheet metal screws) on 51 mm (2.00") dia. circle
wall mounting bracket included
Flange Size227 mm
Measurement TypeTemperature, Humidity
Probe Diameter19 mm
Probe Length254 mm
Relative Humidity3 to 95%
Relative Humidity Accuracy± 2% RH
Repeatability± 0.3°C
Supply Power TypeDC
Temperature Measurement, Max85 °C
Temperature Measurement, Min-20 °C
Time Constant(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air
Time Constant, Relative Humidity(for 90% response at 25°C
in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH
Weight198 g
