Code: 790119

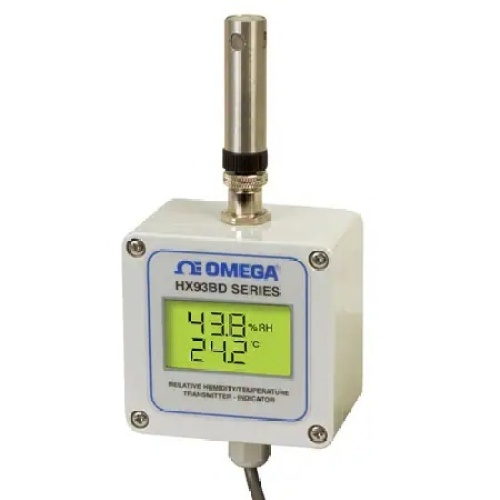

Omega HX93BDV1 T/HUM TX WALL MNT DISPLY0-5VDC
Normally In Stock
Omega HX93BDV1 T/HUM TX WALL MNT DISPLY0-5VDC
Condition: New
Usually ships Same Day or Next Day$684.97
Sale Price
$570.81
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Relative Humidity/Temperature Transmitter, 0 % to 100 %, -30 °C to 75 °C, 9 Vdc to 30 Vdc, 0 Vdc to 5 Vdc, Wall Mount with Display, HX93B Series, Each
Specifications
Component
Relative Humidity/Temperature Transmitter
Conditioner Supply Voltage
9-30 VDC
Manufacturer
Omega Engineering
Conditioner Output Signal Range
0-5 Vdc
Features
4 to 20 mA, 0 to 1 Vdc, 0 to 5 Vdc or 0 to 10 Vdc Outputs for Both Temperature and Relative Humidity
Rugged Industrial Splashproof Enclosure NEMA 13 (IP54)
Accurate to ± 0.6°C (0 to 50°C) and ± 2.5% (10 to 90% Relative Humidity)
New Models with Built-In Digital Display to Indicate Temperature and Relative Humidity
Cable Diameter8 mm
Electrical ConnectionLiquid-tight nylon with neoprene gland, for 2.50 to 8.00 mm (0.09 to 0.315") diameter cable
internal 6 position terminal block accepts 14 to 22 gauge wire
Enclosure RatingsIP54, NEMA Type 13
Length80.01 mm
Materials, WettedPolycarbonate
Measurement TypeTemperature, Humidity
Relative Humidity Response Time8 sec
Repeatability± 0.1% RH
Response Time5 to 30 sec
Sampling Rate0.25 Hz (4 seconds between updates)
Supply Power TypeDC
Temperature Measurement, Max75 °C
Temperature Measurement, Min-30 °C
Width82.3 mm
Wire Gauge22 to 14 AWG
