Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

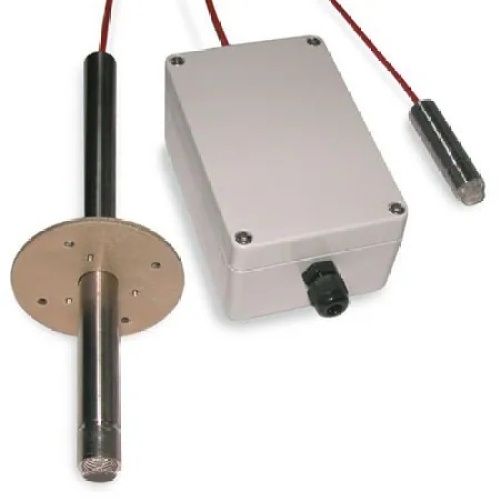

Omega HX15-D HI-TEMP/RH TX DUCT MOUNTED
Normally In Stock
Code: 790108
Omega HX15-D HI-TEMP/RH TX DUCT MOUNTED
Condition: New
Usually ships Same Day or Next Day$1354.55
Sale Price
$1128.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Relative Humidity/Temperature Transmitter, High Temperature, 3 % to 95 %, -40 °C to 180 °C, 7 Vdc to 30 Vdc, 4 mA to 20 mA (x2), Duct Mount, 79 mm Probe, NEMA 4X Enclosure, HX15 Series, Each
Specifications
Conditioner Output Signal Range
4-20 Ma
Component
Relative Humidity/Temperature Transmitter
Conditioner Supply Voltage
7-30 VDC
Manufacturer
Omega Engineering
Features
Remote Stainless Steel Probe (included)
64 mm (2.5") Long Wall Mounted Probe
216 mm (8.5") Long Duct Mounted Probe
2% RH, 0.5°C Accuracy
Accuracy± 0.5 °C (± 0.9 °F)
Calibration OptionTrim Pot
Display TypeN/A
Electrical Output4 to 20 mA
Enclosure RatingsIP66
Length120 mm
Materials, WettedABS
Measurement TypeTemperature, Humidity
Operating Temperature, Max180 °C
Operating Temperature, Min-40 °C
Output Detail4 to 20 mA for 0 to 100% RH and 4 to 20 mA for -40 to 180°C (-40 to 356°F)
Probe Diameter16 mm
Relative Humidity± 2% RH
Sensor TypeRH, thin polymer capacitor
temperature, 1000 Ω Platinum RTD
Supply Power TypeDC
Supply Voltage7 to 30 Vdc
Temperature Measurement, Max70 °C
Temperature Measurement, Min-20 °C
Time Constant30 s, 90% response, 1 ms moving air
Width80 mm
