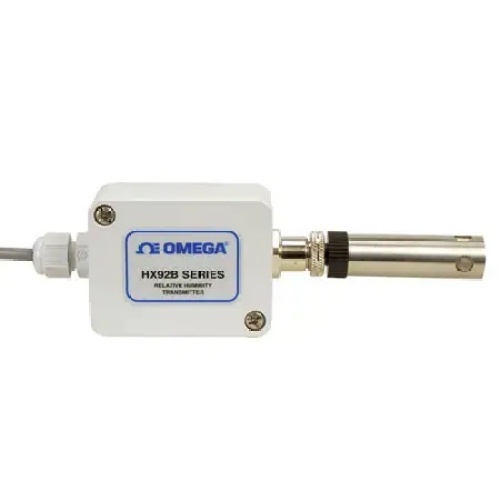

Omega HX92BC-D HUM XMITTER DUCT MNT 4-20MA CE
Normally In Stock
Code: 790092
Omega HX92BC-D HUM XMITTER DUCT MNT 4-20MA CE
Condition: New
Usually ships Same Day or Next Day$563.44
Sale Price
$469.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Relative Humidity Transmitter, 0 % to 100 %, 9 Vdc to 30 Vdc, 4 mA to 20 mA, Duct Mount, HX92B Series, Each
Specifications
Conditioner Output Signal Range
4-20 Ma
Conditioner Supply Voltage
9-30 VDC
Manufacturer
Omega Engineering
Component
Relative Humidity Transmitter
Features
4 to 20 mA, 0 to 1 Vdc, 0 to 5 Vdc or 0 to 10 Vdc Outputs
Accurate to ± 2.5% (20 to 80% Relative Humidity)
Rugged Industrial Splashproof Enclosure NEMA 13 (IP54)
Duct Mount Kit Included with Duct Mount and Remote Probe Models
Accuracy± 4 %
Cable Diameter6.73 mm
Enclosure RatingsIP54
Materials, WettedPolycarbonate
Measurement TypeHumidity
Relative Humidity0 to 100% RH
Relative Humidity Response Time8 sec
Repeatability± 0.1% RH
Sampling Rate0.25 Hz (4 seconds between updates)
Supply Power TypeDC
Temperature Measurement, Max75 °C
Temperature Measurement, Min-30 °C
Wire Gauge22 to 14 AWG
