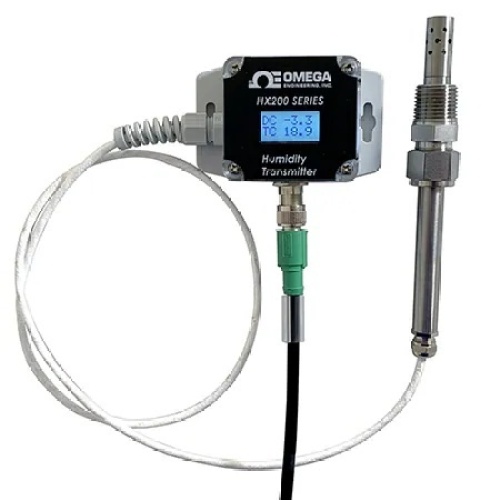

Omega HX200HR-RS REMOTE MOUNT TEMP/RH XTR SELECT OUTPUT
Normally In Stock
Code: 790088
Omega HX200HR-RS REMOTE MOUNT TEMP/RH XTR SELECT OUTPUT
Condition: New
Usually ships Same Day or Next Day$1776.78
Sale Price
$1480.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Relative Humidity Transmitter, 0 % to 100 %, -25 °C to 200 °C, 12 Vdc to 28 Vdc, 4 mA to 20 mA/RS232, NIST Traceable Calibration Certificate Included, Selectable C/F, HX200 Series, Each
Specifications
Conditioner Output Signal Range
4-20 Ma
Manufacturer
Omega Engineering
Component
Relative Humidity Transmitter
Conditioner Supply Voltage
12-28 Vdc
Features
High Accuracy with Certificate of Calibration
High Temperature Sensor to 200°C (392°F) (at 0% RH)
High Pressure Sensor to 750 psi (51.7 bar)
Switchable for Dew Point or Humidity
Accuracy± 1 °C (± 1.8 °F)
Accuracy Detail± 1.0°C from -20 to 40°C (-4 to 104°F)
± 3.0°C below -20°C (-4°F)
Additional Features 1NIST traceable calibration certificate included, Selectable C or F
Dew Point Temperature, Max40 °C
Dew Point Temperature, Min-60 °C
Display Type2 line LCD
Electrical Output4 to 20 mA
FilterStainless Steel
Length88.9 mm
Mounting Holes Center Length78.7 mm
Operating Temperature, Max200 °C
Output DetailSingle Output: 4 to 20 mA loop powered (relative humidity or dew point)
Pressure LimitsUp to 750 psi
Pressure, Min0 psi
Pressure NoteMaximum Sensor Pressure Rating
Probe Diameter1.27 cm
Probe Length10.16 cm
Process Connection Size1/2 in
Process Connection TypeNPT Male and Female
Relative Humidity1 to 95%
Resolution0.1
Sensor Material304 Stainless Steel
Supply Power Note4 to 20 mA loop powered, 2-wire 24 Vdc (typical) 12 to 28 Vdc
Supply Power TypeLoop Powered
Supply Voltage12 to 28 Vdc
Weight1.8 kg
Width63.5 mm
