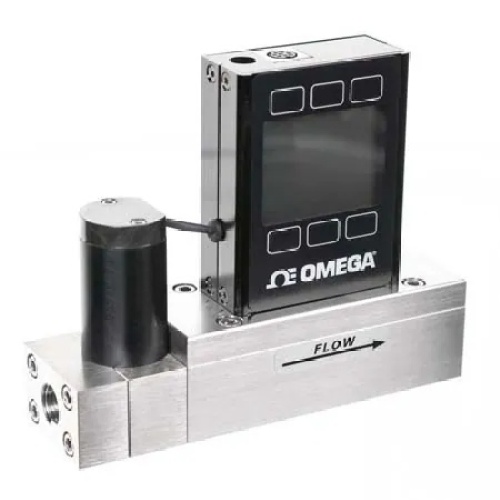

Omega FMA-2609A GAS MASS FLOW CONTRL 50 SLPM
Normally In Stock
Code: 779340
Omega FMA-2609A GAS MASS FLOW CONTRL 50 SLPM
Condition: New
Usually ships Same Day or Next Day$4264.54
Sale Price
$3553.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Mass & Volumetric Flow Controller, RS232, Gas, 0.25 SLM to 50 SLM, 145 psi, 50 °C, ± 0.8 %, 1/4 " NPT Female, 0 Vdc to 5 Vdc, w/Power Supply, LCD, 300 SS, Al, Silicone, FKM, FMA-2600A Series, Each
Specifications
(Instrument-Sensor) Medium
Air
(Instrument-Sensor) Medium
Nitrogen
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Gases
(Instrument-Sensor) Medium
Oxygen
Component
Mass Flow Meter
(Instrument-Sensor) Supply Voltage
12- 30 VDC
(Instrument-Sensor) Span
0 To 145 Psi
Features
130+ Gas Calibrations, Including: He, O2, Neon, N2O, N2, Air, Argon, CO, CO2, Methane, Ethane, Propane, Butane, Acetylene, Ethylene, H2
Pressure, Temperature, Volumetric Mass Flow Simultaneously Displayed
Easy Operator Push Button Interface
NIST Traceability Standard
Accuracy± 0.8 %
Accuracy Detail± (0.8% of reading + 0.2%FS)
Additional Features 1Power Supply Included
CalibrationNIST Certificate
Data InterfaceRS232
Display TypeLCD
Electrical Connection8-pin mini DIN
Excess Flow Rate2.4% FS
Height3.9 in
Humidity Range0 to 100% RH non-condensing
Input Control Signal0 to 5 Vdc
Materials, WettedAluminum, Epoxy, FKM, Glass, Gold, Silicone, Stainless Steel
Media CompatibilityAir, Gases, Nitrogen, Oxygen
Operating Pressure, Min0 psi
Operating Pressure Note145 psig
To Use in Volumetric Mode: Near atmosphere, 15 psig
recommended maximum. Volumetric flow meters and
controllers not certified for accuracy at mass flow rates above
the rated flow range of the meter. They are designed for near
atmospheric pressure conditions only. The recommended
maximum operating pressure is 15 psig
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Pressure, Min5 psi
Repeatability± 0.2%
Response Time100 ms
Span Shift0.02% FS/°C/atm
Turndown Ratio200:1
Volumetric Flow Rate, Min0.0025 SCCM
Width1.1 in
