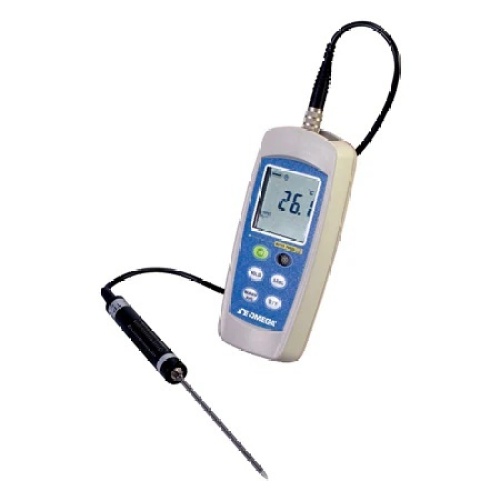

Omega HH370 WATERPROOF RTD W/PROBE CE
Normally In Stock
Code: 776991
Omega HH370 WATERPROOF RTD W/PROBE CE
Condition: New
Usually ships Same Day or Next Day$845.38
Sale Price
$704.48
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Handheld RTD Thermometer, Waterproof, Pt100, Pt1000, 4.5 V (3 AAA), 5-pin Connector, 1-CH, IEC751, Class A, -100 °C, 300 °C, Each
Specifications
(Instrument-Sensor) Supply Voltage
60 VDC
Component
Temperature Meter
Manufacturer
Omega Engineering
Features
IP67 Waterproof Construction
NIST-Traceable Certificate Included (No Points)
Selectable Pt100 or Pt1000 Input
Max/Min/Average Temperature Recording
Battery life100 hr
Height150 mm
Length30 mm
Measuring Temperature Range, Max300 °C
Measuring Temperature Range, Min-100 °C
Number of Channels1
Operating Temperature NoteOperating Temperature/Humidity:0 to 50°C (32 to 122°F)
0 to 80% RH
Power Consumption0.53 mA
Probe Dimensions NoteApprox 120 mm (4.72")
Probe Length120 mm
Relative Humidity, Max0.8
Relative Humidity, Min0%
Sampling Rate2 Hz (2 updates/second)
Sheath Length100 mm
Sheath Material304 Stainless Steel
Storage Temperature, Max60 °C
Storage Temperature, Min-10 °C
Storage Temperature NoteStorage Temperature and Humidity:-10 to 60°C (14 to 140°F)
0 to 80% RH
Supply Power NoteMaximum Voltage at Temperature Input: 60 Vdc or 24 Vrms AC
Supply Voltage60 Vdc
Temperature Accuracy± 0.1% of rdg + 0.4 °C
Temperature Accuracy NoteAccuracy (at 23 ± 5°C): ± 0.1% of rdg + 0.4°C (± 0.1% of rdg + 0.8°F)
Probe Accuracy : IEC751, Class A ± 0.15°C ± 0.002t (t = measurement temperature)
Temperature CoefficientFor ambient temperatures from 0 to 18°C and 28 to 50°C, add 0.01% of rdg + 0.03°C or 0.01% of rdg + 0.06°F
Temperature Resolution0.1 °C
Temperature Sensor TypeRTD
Weight175 g
Weight Note175 g (6.2 oz)
Width66 mm
