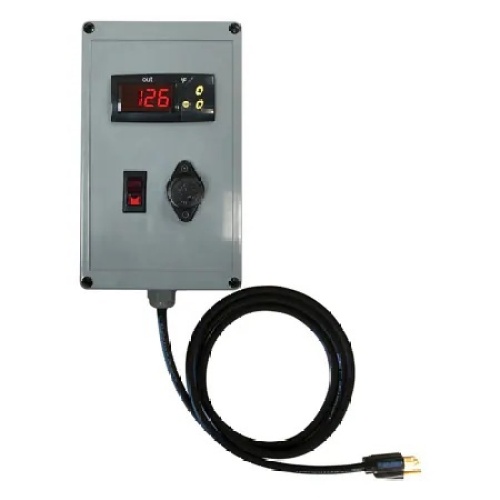

Omega CN-TOT-A-175JF-120V P.THERMOCOUPLE TEMP.CONTROLLER
Normally In Stock
Code: 776224
Omega CN-TOT-A-175JF-120V P.THERMOCOUPLE TEMP.CONTROLLER
Condition: New
Usually ships Same Day or Next Day$616.12
Sale Price
$513.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Portable Thermocouple Temperature Controller, Temperature, J Type T/C, 1 I/P, 120 Vac, 1 O/P, Wall/Benchtop, AC, 3 Digit Single Display, CN-TOT, Each
Specifications
(Instrument-Sensor) Supply Voltage
120 VAC
Component
PID Controller
Manufacturer
Omega Engineering
Features
Portable, Plug and Play
Easy-to-Use Digital On/Off Controller
Type J Thermocouple Mini Connector Input
5ºC (9°F) Differential (Fixed)
Accuracy± 1 %
Cable Length1.8 m
Display Type3 Digit LED
Form factorWall or Benchtop Mount
Height4.75 in
Input TypeThermocouple
Length7.88 in
Current, Max15 A
Measurement TypeTemperature
Measuring Range10 to 79 °C
Number of Control Outputs1
Number of Inputs1
Operating Temperature, Max55 °C
Operating Temperature, Min-10 °C
Power Consumption3 W
Supply Power TypeAC
Thermocouple TypeJ
