Code: 775825

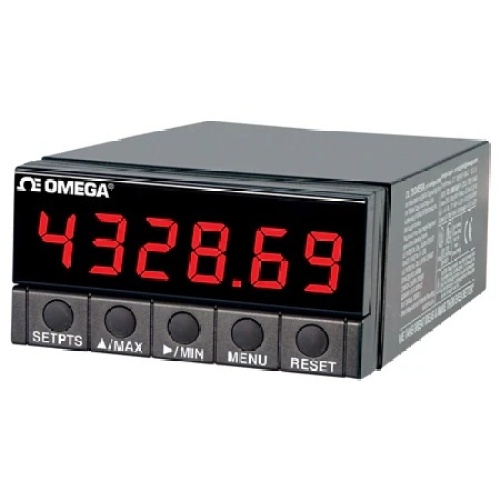

Omega DP41-RTD-AR4 RTD PANEL METER W/QUAD RELAY OPTION
Normally In Stock
Omega DP41-RTD-AR4 RTD PANEL METER W/QUAD RELAY OPTION
Condition: New
Usually ships Same Day or Next Day$2091.24
Sale Price
$1742.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Temperature Digital Panel Meter, 1/8 DIN, 6 Digit, 14-Segment LED Display, AC Supply, RTD I/P, Analog & 4 Relay O/P, DP41 Series, Each
Specifications
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) NEMA Protection
NEMA 4
Component
Temperature Panel Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
115 - 230 Vac
Features
Extended 5-Year Warranty at No Extra Charge
6-Digit Display
Min/Max Storage
4 Isolated Open Collector Outputs
A/D ConversionDual-slope technique
Accuracy± 0.005 %
Common Mode Rejection120 dB
Common Mode Voltage1500 Vp per HV test
Current Measurement Range0 to 20 mA, 4 to 20 mA
Cutout Dimensions45 x 92 mm
Display ColorRed, Green
Display Size13.7 mm (0.54 in)
Display Type6 Digit Single LED
Display Type NoteRed or green 6-digit, 14-segment, 13.7 mm (0.54") high
4 alarm indicators
Enclosure RatingsIP65, NEMA Type 4
Form factor1/8 DIN
Height48 mm
Input ConfigurationSingle-ended
Length165 mm
Normal Mode Rejection60 dB
Number of Inputs1
Offset Adjustment0 to 999,999 or 0 to -99,999, programmable
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
PolarityUnipolar/Bipolar, programmable
Power Consumption10 W
Power Consumption Note6 W nom., 10 W max
Reading Rate3/s or 13/s, 60 Hz
3/s or 12/s, 50 Hz
Relative Humidity95% RH, non-condensing
Resolution15-bit
Sampling Rate13 Hz (13 updates/second)
Sensor Break ProtectionUp-scale or down-scale, programmable
Sensor/Transmitter Power10 V at 30 mA
24V at 25 mA
Setpoint4 isolated open collector
rated 150 mA at 1V sink, 30V open
Span Adjustment0.00001 to 500,000 counts, programmable
Step Response1 sec to 99.9%
Storage Temperature, Max85 °C
Storage Temperature, Min-40 °C
Supply Power Note115 or 230 Vac, 49 to 400 Hz
10 to 32 Vdc
Supply Power TypeAC
Thermal Span Effect±20 ppm
Warm-Up to Rated Accuracy50 min
Weight574 g
Width96 mm
