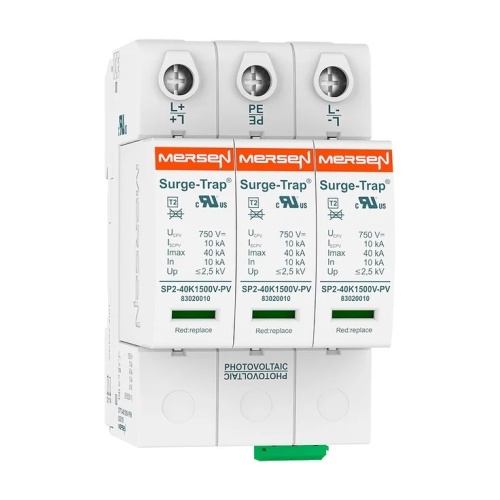

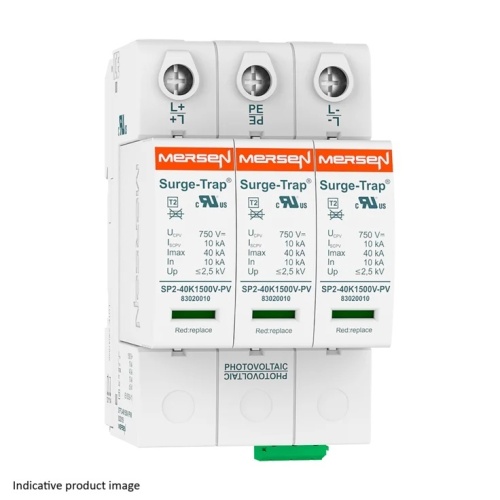

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 765633
Mersen 83020138 Surge Protection Device Type 2, 40kA Imax (8/20), Y PV, 600Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules
Normally In Stock
Mersen 83020138 Surge Protection Device Type 2, 40kA Imax (8/20), Y PV, 600Vdc, Photovoltaic, 3 Poles, Pluggable, 3 Modules
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$882.42
Sale Price
$735.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Surge-Trap® Pluggable STPT2 Series - YPV is the PHOTOVOLTAIC range of Type 2/Class II devices intended for discharging induced voltage surges (8/20 μs), in accordance with IEC/EN 61643-31 standards. DIN rail plug-in format.
Specifications
Manufacturer
Mersen
Component
Surge Protection Device
Features
Maximum discharge current (8/20μs): 40kA
Nominal discharge current (8/20μs): 20kA
Ucpv: 65, 80, 660, 1060 Vdc and 1500Vdc
Iscpv: 10kA (EN 50539-11), no back-up fuse required in PV
SCCR: 50-100kA (UL 1449 4th Ed)
DIN-rail mountable, plug-in format
Visual and remote end of life indicators
Reversible chassis to allow cable entry from above or below
Mechanically coded cartridges to avoid cartridge
replacement errors
Dynamic thermal disconnection system
with high breaking capacity, optimised for DC voltages.
