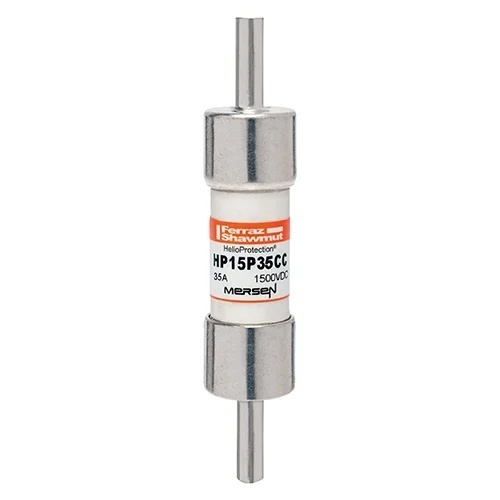

Mersen HP15P35CC HelioProtection® Fuse 1500VDC 35A 20x65mm Crimp Cap
Normally In Stock
Code: 765448
Mersen HP15P35CC HelioProtection® Fuse 1500VDC 35A 20x65mm Crimp Cap
Condition: New
Usually Ships Same Day or Next Day.$104.74
Sale Price
$87.28
MUST BUY IN PACKS OF 20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

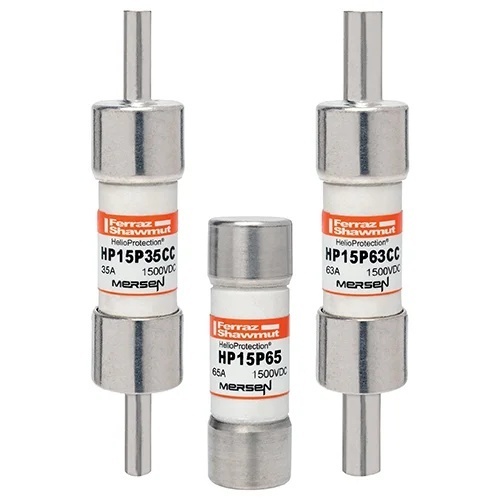

Mersen’s range of 1500VDC photovoltaic (PV) fuse series is designed specifically to meet higher amperage demands of today’s PV circuits. Mersen’s 20x65mm form factor is designed to handle the harsh cyclical loads and thermal conditions of our customers’ highest amperage applications. These 1500VDC rated fuses are designed for low minimum breaking capacity capabilities of 1.35 times the fuse rated current value, which allows for safe circuit interruption under typical low fault current conditions. In addition to the standard ferrule terminal, fuses are also available with Crimp Cap terminals for in-line fuse applications. The unique wire crimp terminal (CC option) permits solderless wire-to-fuse connection for overmold encapsulation of fuse and wiring. Protect your off-grid or grid tied PV system from unexpected line faults using Mersen’s HelioProtection® fuse line.
Specifications
Manufacturer
Mersen
Fuse Amperage Rating
35 Amp
Component
Fuse
Body/Insulating Material
GMG
Connection/Terminal Material
Tin-Plated Copper
Mounting
Crimp
Connection/Terminal Type
Crimp Cap
Features
10A to 65A for higher amperage applications
Low fault current interrupting capability
Durable construction for enhanced system longevity
Temperature and load cycling capability
Certified to global standards
Recommended fuse holders: HP15FHP80W, HP15FHP80B
