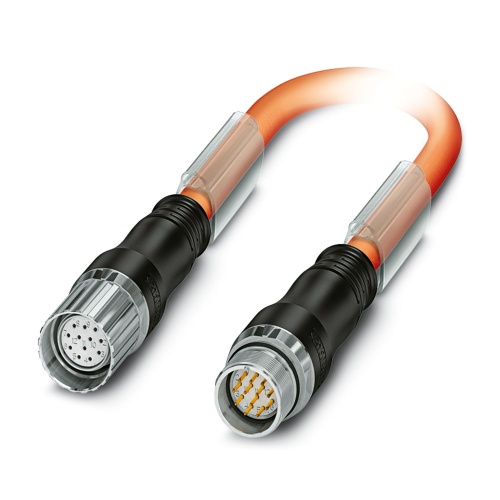

Phoenix Contact 1619294 Connector in molded plastic on both sides K-12-M23 M9/010-E00/M23 F8
Normally In Stock
Code: 764635
Phoenix Contact K-12-M23 M9/010-E00/M23 F8 - Connector in molded plastic on both sides, Straight, plastic molded, number of positions: 12, type of locking: Screw locking mechanism, Straight, plastic molded, cable length: 10 m, shielded: yes, color of outer sheath: orange RAL 2003 - 1619294
Condition: New
Usually ships Same Day or Next Day $367.55
Sale Price
$306.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1619294 The connector features a molded plastic housing on both sides with 12 possible positions and is secured by a screw locking mechanism. The cable has a length of 10 meters and is shielded for protection. It also has an outer casing in orange color (RAL 2003) and is made of straight, molded plastic.
Specifications
Color
Orange
Cable Shielding
Shielded
Manufacturer
Phoenix Contact
Component
Signal And Power Cable
Cable Length
1 M
Jacket Type
TPU
Features
Our standard: robust halogen-free PUR cable
Simple and safe: 100% electrically tested and assembled ready for use
Designs with preassembled cables on one or both sides
High flexibility: customer-specific assemblies and cable lengths can be supplied
Downloads
000807743_04_ULListCA_E335019-20140707.pdfccc-exempt declaration.pdfchina rohs declaration-spreadsheet.pdfcoc document.pdfeu declaration of conformity.pdfproduct family drawing.pdfProduct Specification.pdfpxc_1619294_09_00_K-12-M23-M9-010-E00-M23-F8_3D.stpsimplified 3d model of the item.stpSpecification Sheet.pdfuk declaration of conformity.pdf
