Code: 762291

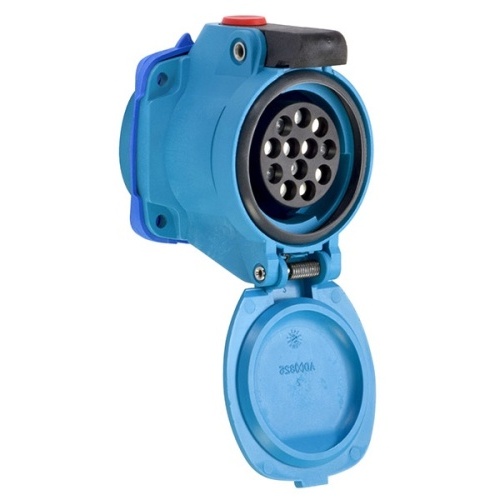

Meltric 63-A4001-375-843 DSN12c RECEPTACLE POLY BLUE SIZE 1 TYPE 4X IP 69 11P+G 15 A 480 VAC/ VDC 60 Hz MUSHROOM PAWL PADLOCK PAWL
Normally In Stock
Meltric 63-A4001-375-843 DSN12c RECEPTACLE POLY BLUE SIZE 1 TYPE 4X IP 69 11P+G 15 A 480 VAC/ VDC 60 Hz MUSHROOM PAWL PADLOCK PAWL
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$519.83
Sale Price
$433.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 63-A4001-375-843 DSN12c RECEPTACLE POLY BLUE SIZE 1 TYPE 4X IP 69 11P+G 15 A 480 VAC/ VDC 60 Hz MUSHROOM PAWL PADLOCK PAWL
Specifications
Receptacle Color
Blue
Receptacle Voltage
480 VAC
Receptacle Amperage
15 Amp
Receptacle Contact Configuration
11P+G
Receptacle Size
Size 1
Receptacle Composition
Poly
Manufacturer
Meltric
Meltric Series
DSN12C
Component
Receptacle
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
