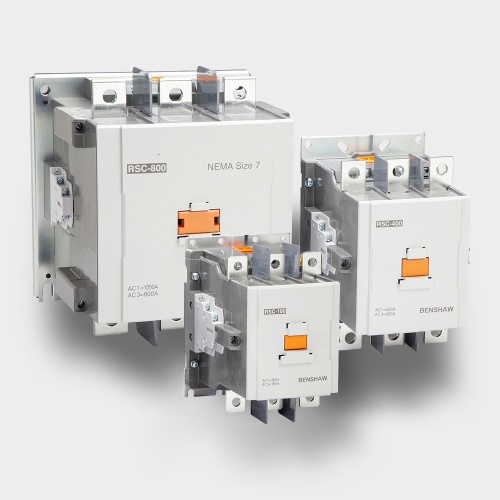

Benshaw RC-12A-56AC120 - 120 VAC Coil, 3P, 12 Amp
Normally In Stock
Code: 759626
Benshaw RC-12A-56AC120 - NEMA Rated Three Pole Contactor (1 NO/1 NC Auxiliary Contacts) NEMA Size 0 – 12A FLA Max (120V Coil) -3-10 HP @ 208-600 VAC 3 Phase
Condition: New
Usually ships Same Day or Next Day$83.46
Sale Price
$69.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Benshaw RC-12A-56AC120 - Benshaw's Control Products feature the RC/RSC Series contactors, designed for precise motor control and efficient switching of loads up to 690 VAC. These contactors cover NEMA sizes 00–7, IEC ratings from 9 to 800 Amps, and UL ratings up to 600 HP. Notable features include the world's longest lifespan, compatibility with global standards, direct mount thermal overload relays, and modular accessories. The RediStart™ line, meeting high standards, offers DIN rail mountability, integral coil surge suppression, and a finger-proof design. Compact and efficient, these contactors provide reliable solutions with standard features like phase barriers, unit identification markers, and dual auxiliary contacts.
Specifications
Starter NEMA Size
0
Starter Coil Voltage
120 VAC
Starter Auxiliary Contacts
1 NO + 1 NC
Starter HP
3 HP @ 208 VAC 3 Phase
Component
NEMA Contactor
Starter Poles
Three Pole
Starter Amperage
12 Amp
Manufacturer
Benshaw
Starter HP
5 HP @ 240 VAC 3 Phase
Starter HP
10 HP @ 600 VAC 3 Phase
Starter HP
7.5 HP @ 480 VAC 3 Phase
Features
DIN rail mountable to 150 amps
Full product family to 800 amps
Direct mount overload relays
Draw out cassette coils 180 amps and above
Integral coil surge suppression 180 amps and above
Low coil power consumption
Phase barriers supplied as standard
Uni-directional mounting
Extremely long lifespan
Compact size
Unit identification marker
