Code: 738368

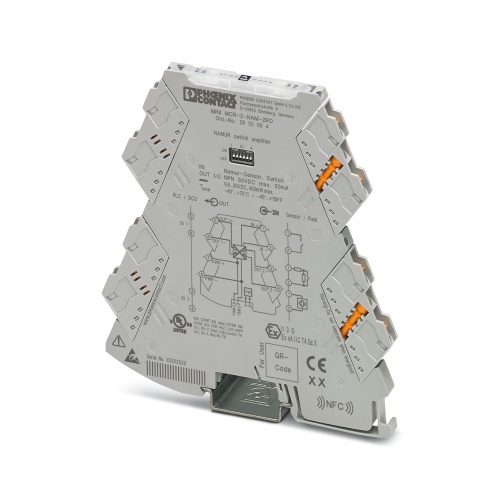

Phoenix Contact 2902004 Isolation switch amplifier MINI MCR-2-NAM-2RO
Normally In Stock
Phoenix Contact MINI MCR-2-NAM-2RO - Isolating switch amplifier - 2902004
Condition: New
Usually ships Same Day or Next Day$169.33
Sale Price
$141.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2902004 The product features a customizable NAMUR isolation amplifier with interchangeable connections to accommodate various types of proximity sensors, switch contacts, and resistance circuits. Two transistor outputs are available, allowing for configuration through a DIP switch, while the device also employs screw connection technology for secure attachment.
Specifications
Manufacturer
Phoenix Contact
Component
Isolating Switch Amplifier
Features
Floating contacts and contacts with resistance circuit can be connected
Power supply possible via the foot element (TBUS)
Highly compact isolation amplifier for electrical isolation, amplification, and duplication of proximity sensor signals
For proximity sensors according to IEC 60947-5-6 and EN 50227
Second output can be used as a duplicator or error signaling output
Error indication via diagnostic LED and analog signal
N/O contacts at output
Input and output signals can be configured via DIP switches
3-way isolation
Downloads
000865033_00_ULListCA_E238705.pdf000892061_00_ULListHazlocUS_E196811.pdf000892062_00_ULListHazlocCA_E196811.pdf001179374_02_DNVShip_TAA000021E.pdf083221967_00_BVSATEX_BVS20ATEXE014X.pdf083222094_00_IECEx_IECExBVS200010X.pdf097595787_00_CCCExCN_2022122310115967.pdf15_4_001_MINI_Analog_Pro_Configuration_via_DIP_switch_DE.wmv15_4_001_MINI_Analog_Pro_Configuration_via_DIP_switch_EN.wmvchina rohs declaration-spreadsheet.pdfChina RoHS Declaration_2902004_06_en.pdfChina RoHS Declaration_2902004_06_zh.pdfcoc document.pdffit, mttf, mtbf (predicted failure rate for the statistical demonstration of reliability of the article).pdfinstallation version_ clipx engineer device parameterization – uniform operating and parameterization software for phoenix contact devices..wmvmanufacturer’s declaration for standard isa 71.04-1985 level g3.wmvnepsi-zertifikat.stpPhoenix Data Sheet.pdfproduct drawing.dxfproduct drawing.pdfsimplified 3d model of the item.stpSpecification Sheet.pdf
