Code: 738358

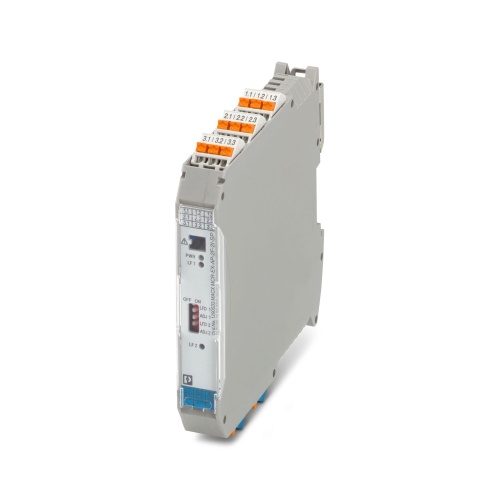

Phoenix Contact 1290533 Frequency measuring transducer MACX MCR-EX-AP-2F-2I-SP
Normally In Stock
Phoenix Contact MACX MCR-EX-AP-2F-2I-SP - Frequency value transformer - 1290533
Condition: New
Usually ships Same Day or Next Day$590.69
Sale Price
$492.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

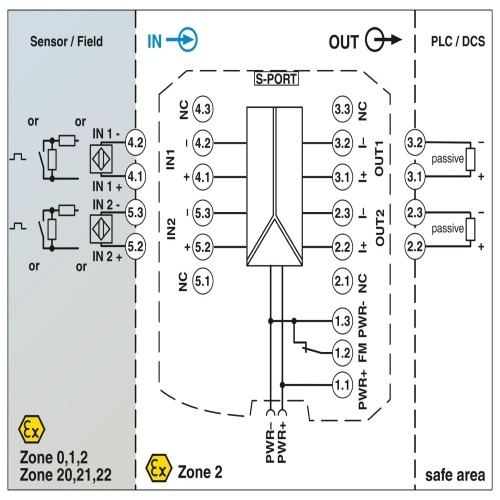

Phoenix Contact 1290533 The frequency transducer uses the input frequencies measured at Ex i ports (ranging from 0.001 Hz to 20 kHz) and outputs them as 0-20 mA current signals that do not require Ex i isolation, utilizing a standard configuration with 2 channels, 5-way isolation, and push-in connections.
Specifications
Manufacturer
Phoenix Contact
Component
Frequency Value Transformer
Features
Reliable and safe signal isolation, conditioning, filtering, and amplifying with our signal conditioners and measuring transducers for explosion protection
Safer and more space-saving than ever: Ex i and SIL 3 with an overall width of just 6.2 mm with highly compact signal conditioners and measuring transducers
Maximum explosion protection for all Ex zones and gas groups with one- and two-channel Ex i signal conditioners and measuring transducers
High operational safety with signal conditioners, all of which have SIL certification
Integrate analog signals easily into the safety chain in accordance with the Machinery Directive with signal conditioners with performance level
Downloads
097292385_00_BVSATEX_BVS21ATEXE016X.pdf097292926_00_IECEx_IECExBVS210018X.pdfcoc document.pdfproduct drawing.dxfproduct drawing.pdfproduct drawing.stppxc_1290533_00_01_MACX-MCR-EX-AP-2F-2I-SP_2D.dxf.crdownloadsimplified 3d model of the item.pdfsimplified 3d model of the item.stpSpecification Sheet.pdf
