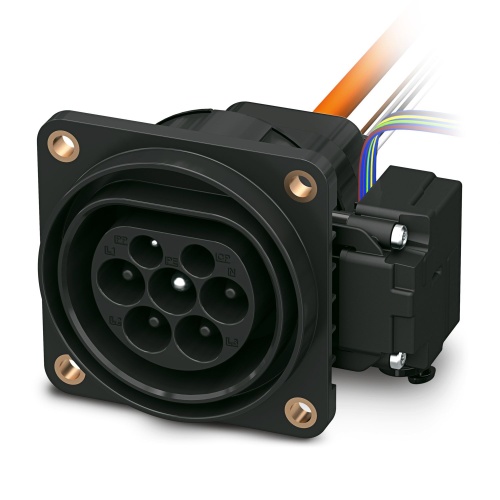

Phoenix Contact 1271965 Vehicle charging inlet CHARX T2HCI24-3AC32-2,0M2
Normally In Stock
Code: 737860
Phoenix Contact CHARX T2HCI24-3AC32-2,0M2 - Charging Inlet, 26 kW, 32 Amp, AC type 2, Mode 2, 3 - 1271965
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$544.06
Sale Price
$453.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1271965 The CHARX connect universal charging inlet is designed specifically for electric vehicles (EVs) and features a 32A, 480V AC input, single-wire connection, and a 2-meter length. It also includes an actuator that requires 24V power and comes with front and rear mounting options via M6 threads. The housing is black and meets the IEC 62196-2 standards for safe charging of EVs, with a standard protective cap included on the AC contacts.
Specifications
Manufacturer
Phoenix Contact
Component
Charging Inlet
Amperage
32 Amp
Charging Cable Length
1 M
Max Power Per Charging Point
26 Kw
Features
Complete product range

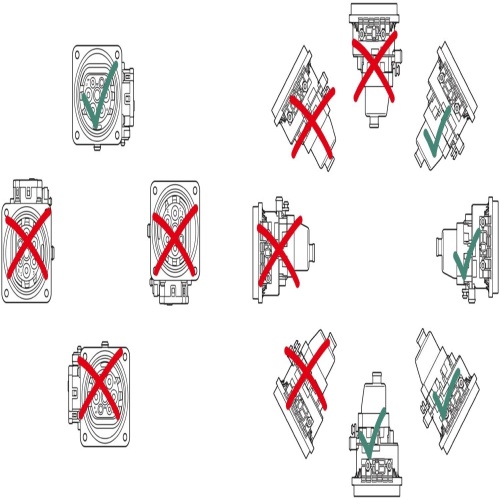

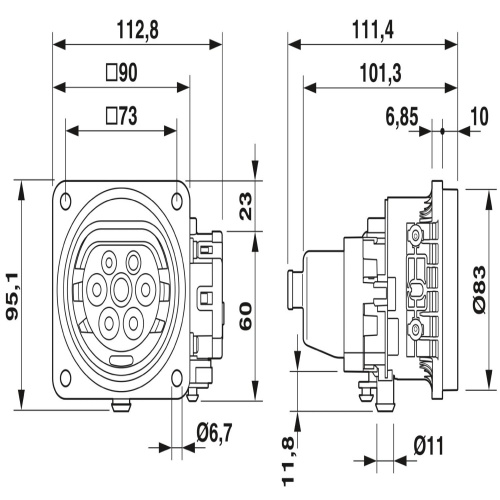

Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001

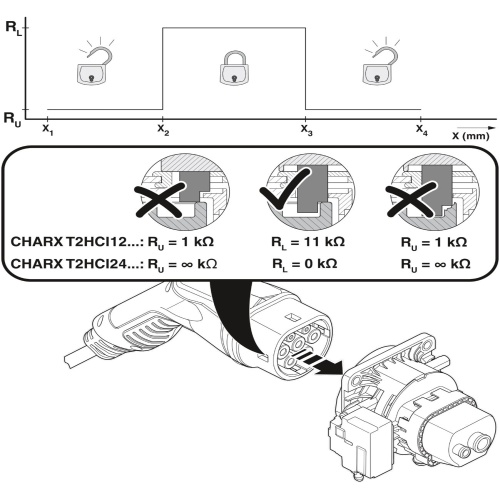

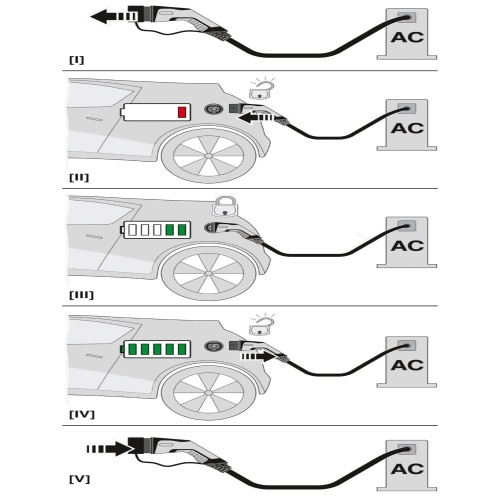

Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
