Phoenix Contact 1360822 Vehicle charging inlet CHARX T1HBI12-1AC48DC250-8,0M1
Normally In Stock
Code: 737855
Phoenix Contact CHARX T1HBI12-1AC48DC250-8,0M1 - Charging Inlet, 250 kW, 250 Amp, AC/DC CCS Typ 1, Mode 2, 3, 4 - 1360822
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1939.06
Sale Price
$1615.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

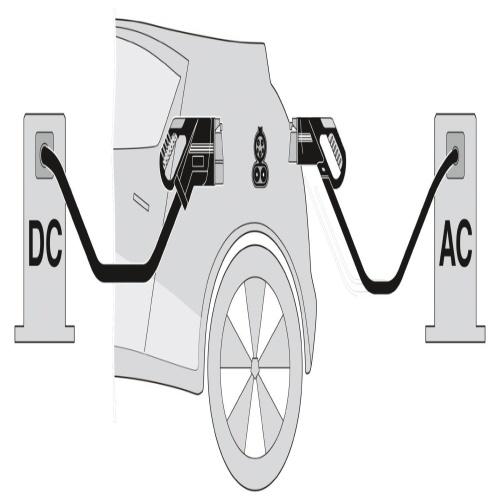

Phoenix Contact 1360822 The CHARX connector is a universal charging inlet that can handle both AC and DC power, featuring a 4-pin configuration with front and rear mounting options, allowing for easy installation on vehicles. It has a maximum rating of 250 A and 1000 V DC, as well as 48 A and 250 V AC, making it suitable for various charging applications. The connector is equipped with a locking actuator that requires a 12 V power source to operate, and its housing is black in color. The standard protective cap is included for both DC and AC contacts, ensuring safe operation of the charger.
Specifications
Manufacturer
Phoenix Contact
Amperage
250 Amp
Component
Charging Inlet
Charging Cable Length
1 M
Max Power Per Charging Point
250 Kw
Features
Complete product range
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
