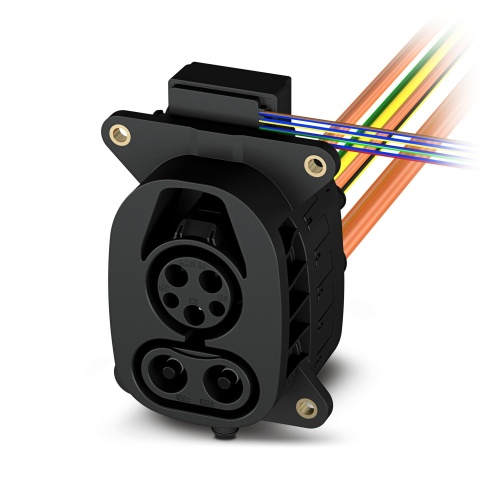

Phoenix Contact 1358243 Vehicle charging inlet CHARX T1HBI12-DC250-5,0M1
Normally In Stock
Code: 737851
Phoenix Contact CHARX T1HBI12-DC250-5,0M1 - Charging Inlet, 250 kW, 250 Amp, DC CCS Typ 1, Mode 4 - 1358243
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1381.06
Sale Price
$1150.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1358243 The CHARX connect universal charger has a 250A permanent capacity and operates at 1000V DC, featuring single wires measuring 5m in length, along with a locking actuator requiring 12V power to operate. It supports front and rear mounting options via M6 screws, housed within a black enclosure. Compliance is achieved through standards IEC 62196-2 and IEC 62196-3 for direct current (DC) charging, accompanied by an included protective cap for the DC contacts.
Specifications
Manufacturer
Phoenix Contact
Amperage
250 Amp
Component
Charging Inlet
Charging Cable Length
1 M
Max Power Per Charging Point
250 Kw
Features
Complete product range

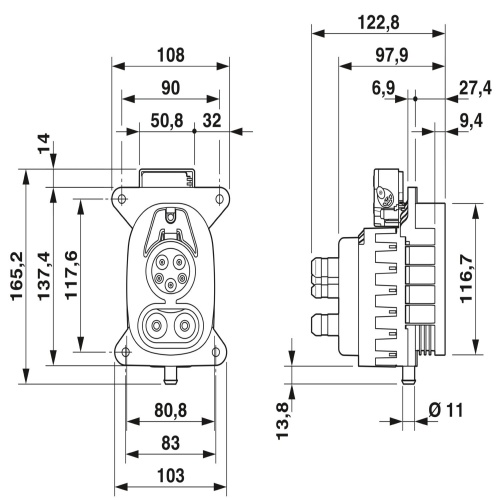

Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001

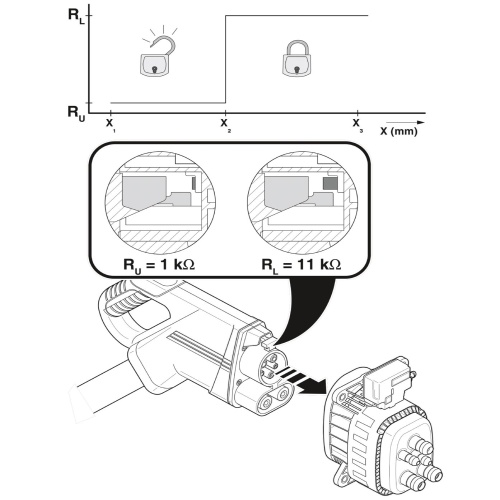

Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
