Phoenix Contact 1211606 Vehicle charging inlet CHARX T1HBI12-DC250-2,0M1
Normally In Stock
Code: 737847
Phoenix Contact CHARX T1HBI12-DC250-2,0M1 - Charging Inlet, 250 kW, 250 Amp, DC CCS Typ 1, Mode 4 - 1211606
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$962.56
Sale Price
$802.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

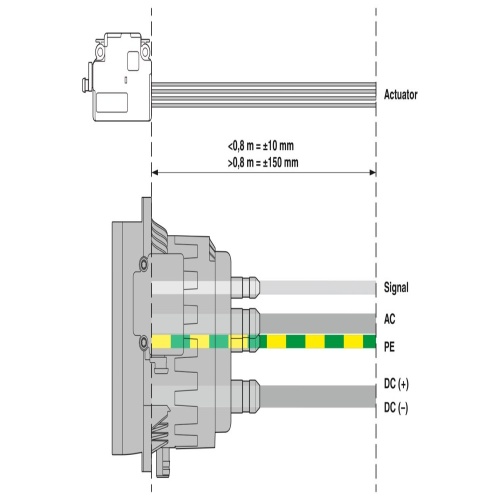

Phoenix Contact 1211606 The CHARX connector type CCS Typ 1 connects vehicles to universal charging systems and can accommodate a 250 A permanent charge with a 1000 V DC voltage supply, featuring single wires that are 2 meters in length, requiring a 12 V locking actuator in a 4-position configuration suitable for front and rear mounting via M6 fasteners, with a black housing compliant with IEC standards 62196-2 and 62196-3, including a standard protective cap for the DC contacts.
Specifications
Manufacturer
Phoenix Contact
Amperage
250 Amp
Component
Charging Inlet
Charging Cable Length
1 M
Max Power Per Charging Point
250 Kw
Features
Complete product range
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
