Phoenix Contact 1436636 Vehicle charging inlet CHARX T1HBI12-DC200-3,0M1
Normally In Stock
Code: 737839
Phoenix Contact CHARX T1HBI12-DC200-3,0M1 - Charging Inlet, 200 kW, 200 Amp, DC CCS Typ 1, Mode 4 - 1436636
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$913.73
Sale Price
$761.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

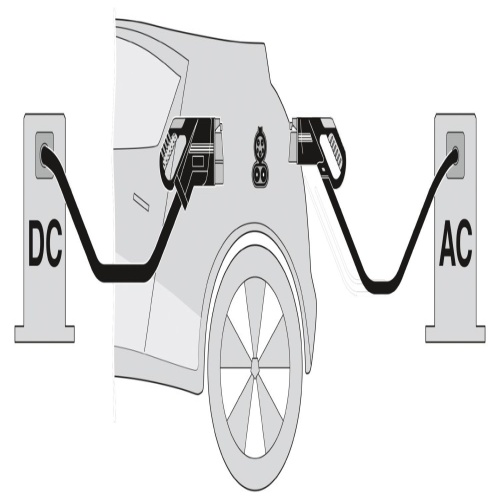

Phoenix Contact 1436636 The CHARX connect universal connector is designed for vehicle charging inlets and features a permanent 200A capacity at 1000V DC single-wire length of 3m with locking actuator powered by 12V and comes with 4-position front and rear mounting options using M6 thread, black housing and meets IEC standards 62196-2 and 62196-3.
Specifications
Manufacturer
Phoenix Contact
Amperage
200 Amp
Component
Charging Inlet
Charging Cable Length
1 M
Max Power Per Charging Point
200 Kw
Features
Complete product range
Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Integrated interlock during charging
Manual emergency release of the locking actuator
Protected and sealed against dirt and water with a high degree of protection
