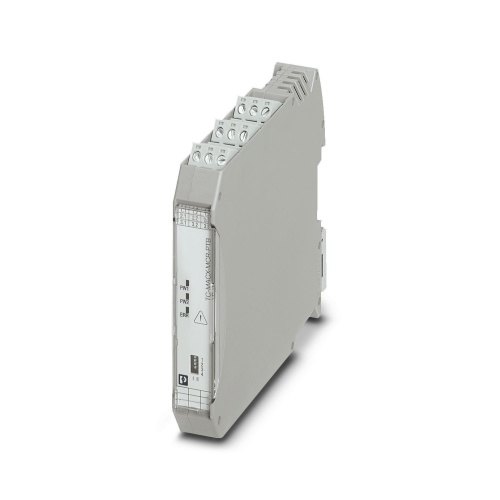

Phoenix Contact 2904673 Power and error message module TC-MACX-MCR-PTB
Normally In Stock
Code: 73156
TC-MACX-MCR-PTB Phoenix 2904673 Power and error message module
Condition: New
Usually ships Same Day or Next Day$182.40
Sale Price
$152.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2904673 The power and fault signaling module is designed specifically for use on the Termination Carrier and can be connected using a screw connection, but it should not be used with a DIN rail bus connector.
Specifications
Component
Power Module
Manufacturer
Phoenix Contact
Features
Bus cable error message for MACX MCR-...(2)NAM... devices connected via DIN rail connectors, can be selected and deselected via DIP switch
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Error message in the event of energy supply failure or fuse fault, can be selected and deselected via DIP switch
Simple or redundant supply, decoupled from diode, protected against polarity reversal
Relay output (changeover contact) and blinking LED for error messages
Supply current up to 2 A (max. 2x 2,5 AT backup fuse required)
May only be used on the Termination Carrier
Undervoltage detection at the input, can be selected and deselected via DIP switch (set to 19.2 V supply voltage)
