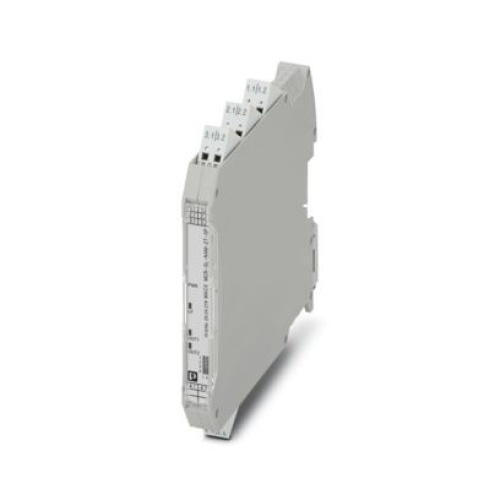

MACX MCR-SL-NAM-2T-SP Phoenix Contact 2924278 Isolation amplifier
MACX MCR-SL-NAM-2T-SP Phoenix 2924278 Isolation amplifier
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $265.54
Sale Price:
$218.17
NAMUR signal conditioner for operating proximity sensors and switches. The signals are transmitted to the control level via 2 transistor outputs (passive). Line fault detection, 3-way electrical isolation, SIL 2, Push-in connection.
| Specifications | |
| Safety Connection Method | Push-in connection |
| Safety Interfaces | Proximity Switches |
| Safety Degree of Protection | IP20 (not assessed by UL) |
| Sub Component | Isolating switch transf. |
| Manufacturer | Phoenix Contact |
| Component | Isolation amplifier |
- Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with disabling of transistor output
- Installation in zone 2, protection type "n" (EN 60079-15) permitted
- Up to SIL 2 in accordance with EN 61508
- Power supply and error indication possible via DIN rail connector
- Signal output 2 can also be used as an error signaling output
- LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
- 2 transistor signal outputs (passive)
- up to 5 kHz
- 4-way electrical isolation
- Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit
- Direction of operation can be selected (operating or closed circuit current behavior)
