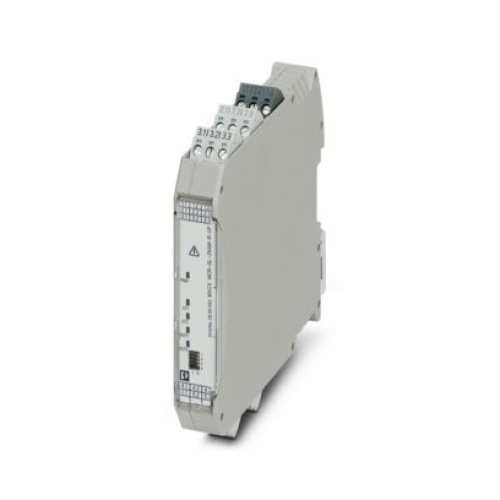

MACX MCR-SL-2NAM-R-UP Phoenix Contact 2865052 Isolation amplifier
MACX MCR-SL-2NAM-R-UP Phoenix 2865052 Isolation amplifier
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $331.44
Sale Price:
$272.31
2-channel NAMUR signal conditioner with wide range power supply for proximity sensors and switches. In terms of signal output, for each channel there is a relay with a changeover contact available. Line fault detection (LFD), 3-way isolation, screw connection, SIL 2.
| Specifications | |
| Safety Connection Method | Screw connection |
| Safety Interfaces | Proximity Switches |
| Safety Contact Type | 1 PDT per channel |
| Manufacturer | Phoenix Contact |
| Component | Isolation amplifier |
- 3-way electrical isolation
- Up to SIL 2 in accordance with EN 61508
- Line fault detection (LFD), can be activated/deactivated, error indicated by flashing red LED with de-excitation of output relay
- Installation in zone 2, protection type "n" (EN 60079-15) permitted
- LED indicators for supply voltage, switching state, and malfunction in accordance with NAMUR NE 44
- 2-channel
- Wide-range power supply of 19.2 ... 253 V AC/DC
- Direction of operation can be selected (operating or closed circuit current behavior)
- Signal output relay (changeover contact)
- Input for NAMUR proximity sensors (EN 60947-5-6), floating contacts or contacts with resistance circuit
