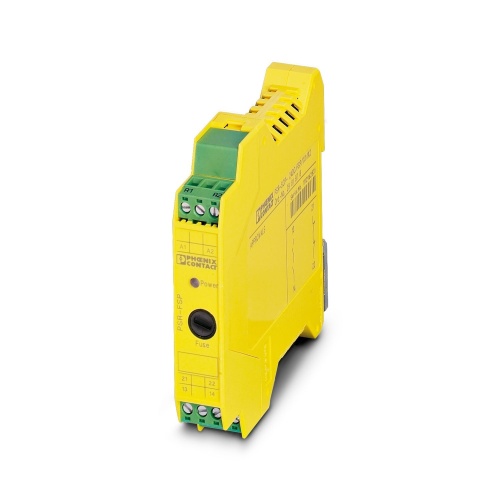

Phoenix Contact 2981978 Coupling relay PSR-SCP- 24DC/FSP/1X1/1X2
Normally In Stock
Code: 73068
PSR-SCP- 24DC/FSP/1X1/1X2 Phoenix 2981978 Coupling relay
Condition: New
Usually ships Same Day or Next Day$265.32
Sale Price
$221.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2981978 This safe coupling relay is designed for SIL 3 high- and low-demand applications, providing a safe way to couple digital output signals to the periphery while enabling one current path and one signal contact, making it suitable for safe state off applications as well, features including a test pulse filter, fuse, plug-in screw connection, and a width of 17.5mm.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
1 Enabling Current Path
Safety Contact Type
1 Confirmation Current Path
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Easy proof test according to IEC 61508 thanks to integrated signal contact
Up to SIL 3 in accordance with IEC 61508
With built-in, replaceable fuse in the enabling current path
Narrow 17.5 mm housing
Long service life thanks to filtering of controller test pulses
Force-guided contacts in accordance with EN 50205
1 enabling current path

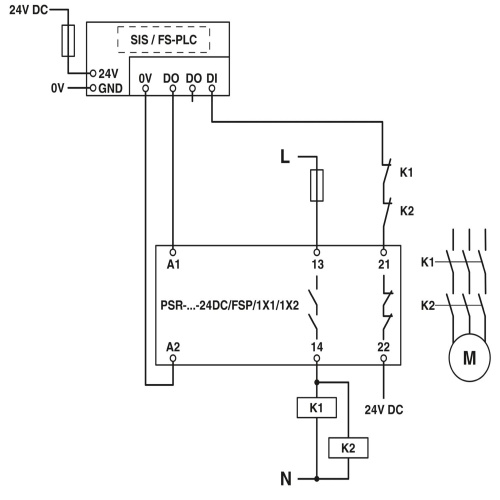

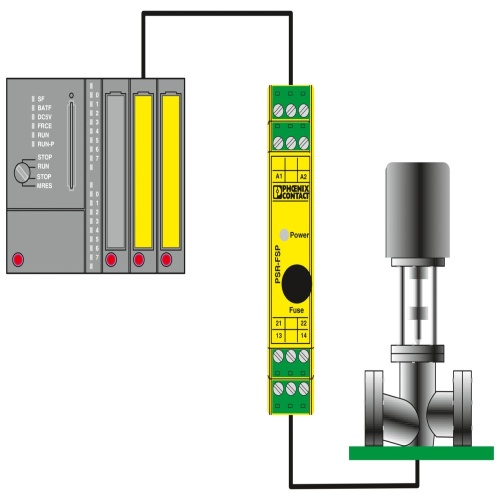

Couples digital output signals from failsafe controllers to I/O devices (valves, etc.) for electrical isolation and power adaptation
