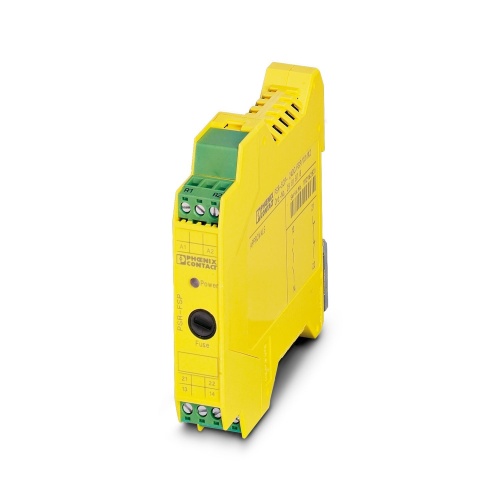

Phoenix Contact 2981981 Coupling relay PSR-SPP- 24DC/FSP/1X1/1X2
Normally In Stock
Code: 73066
PSR-SPP- 24DC/FSP/1X1/1X2 Phoenix 2981981 Coupling relay
Condition: New
Usually ships Same Day or Next Day$265.32
Sale Price
$221.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2981981 A safe coupling relay designed for SIL 3 high- and low-demand applications is available with two output signals that include one enabling current path and one signal contact, suitable for safe state off situations as well as test pulse filtering, fusing, and a plug-in push-in connection, measuring 17.5 mm in width.
Specifications
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Safety Contact Type
1 Enabling Current Path
Safety Contact Type
1 Confirmation Current Path
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Easy proof test according to IEC 61508 thanks to integrated signal contact
Up to SIL 3 in accordance with IEC 61508
With built-in, replaceable fuse in the enabling current path
Narrow 17.5 mm housing
Long service life thanks to filtering of controller test pulses
Force-guided contacts in accordance with EN 50205
1 enabling current path

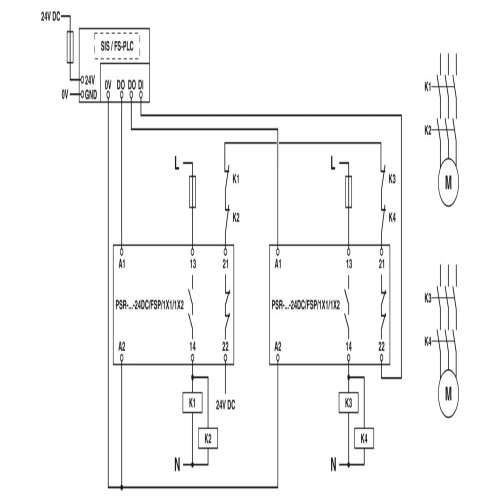

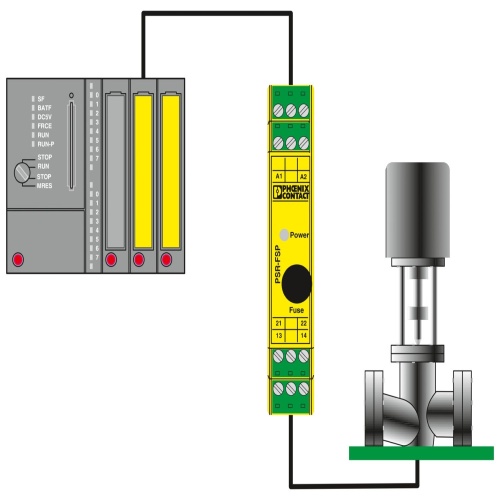

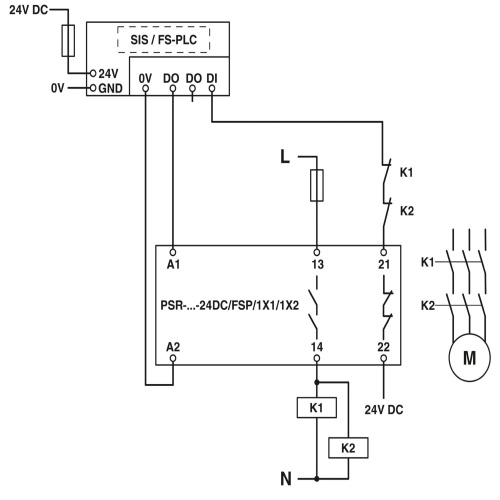

Couples digital output signals from failsafe controllers to I/O devices (valves, etc.) for electrical isolation and power adaptation
