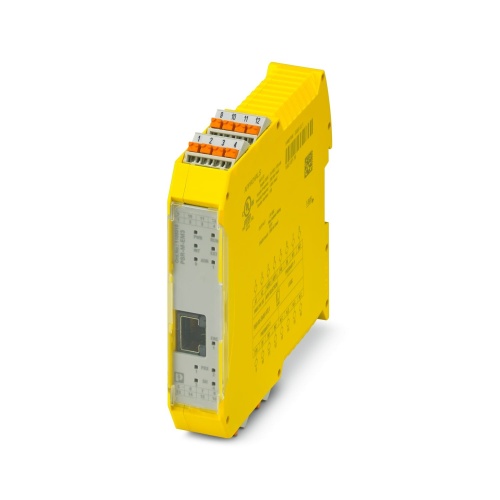

Phoenix Contact 1105010 Extension module PSR-M-EM3-HTL1-PI
Normally In Stock
Code: 73049
PSR-M-EM3-HTL1-PI Phoenix 1105010 Extension module
Condition: New
Usually ships within 7-14 days. Call for ship time.$560.32
Sale Price
$466.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1105010 A safe extension module offers comprehensive monitoring capabilities, tracking zero-speed, speed, and direction of rotation, as well as the status of two axes, an NPN/PNP proximity switch, a single HTL encoder, and is connected via a TBUS interface, designed to meet SIL 3, Cat. 4/PL e safety standards, with added convenience through its pluggable Push-in terminal block and included TBUS connector.
Specifications
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Safety Interfaces
TBUS
Safety Interfaces
Proximity Switches
Safety Interfaces
Encoder
Component
Extension Module
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 3
Safety Relay Supply Voltage
24 Volt
Features
Tool-free and time-saving installation thanks to Push-in technology
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Cost-effective safety solution with a high level of adaptability to individual requirements
Low housing width of just 22.6 mm
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
