Phoenix Contact 2986012 Safety module PSR-SCP- 24DC/TS/M
Normally In Stock
Code: 73015
PSR-SCP- 24DC/TS/M Phoenix 2986012 Safety module
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$1363.40
Sale Price
$1136.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2986012 A safety module featuring adjustable settings with capacities for 20 secure inputs and 4 secure outputs, complemented by alarm, clock, and grounding capabilities through 6 total outputs; expandability is possible via addition of extra I/O modules, up to levels equivalent to SIL 3, Cat.4/PL e, SIL 3, EN 50156, while connectivity is facilitated by plug-in screw connection terminal blocks.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 2
Safety Relay Supply Voltage
24 Volt
Component
Safety Module
Features
Flexible extension with safe inputs and outputs
Up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
EN 50156

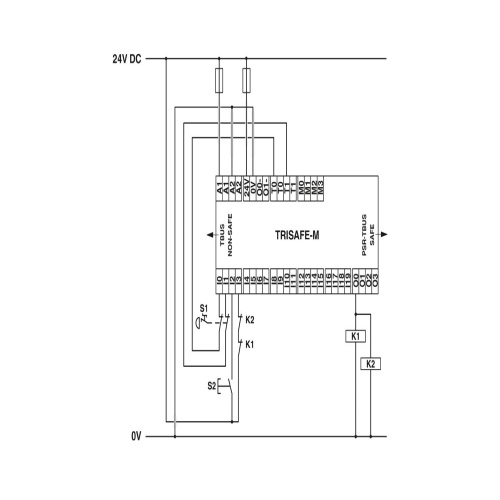

Freely configurable safety module for monitoring emergency stops, safety doors, light grids, etc.
Quick startup thanks to comprehensive simulation and test functions
Easy graphical configuration instead of complex programming

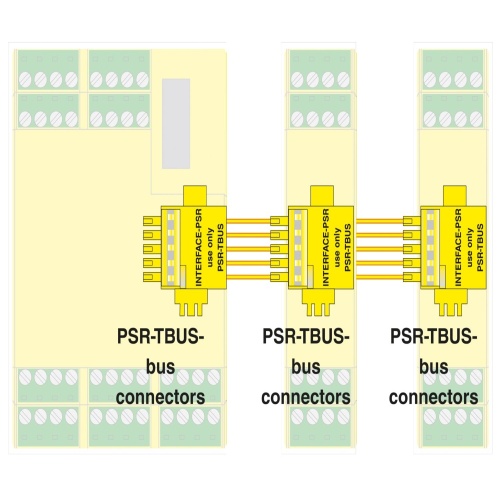

Safe and standard extension via INTERFACE DIN rail TBUS
Option for connecting fieldbus gateways for diagnostics and signaling functions
Easy graphical configuration with the SAFECONF software
Including IFS-CONFSTICK memory stick for easily storing and saving the configuration
Multifunctional use for a wide range of safety functions

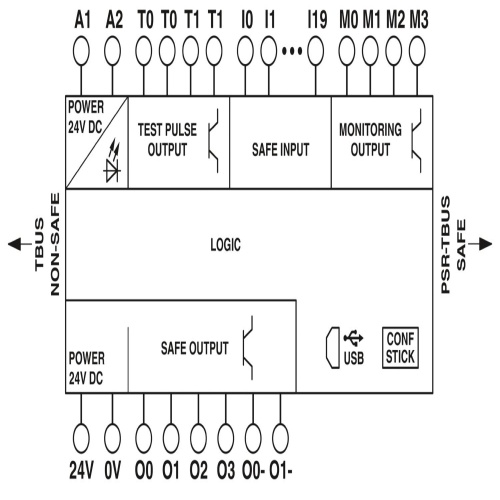

With 20 safe inputs, 4 safe outputs, 4 alarm outputs, and 2 clock outputs on a design width of just 67.5 mm
Downloads
configuration software for psr-trisafe and safetybridge technology (lpsdo)..zelModule_1_Determiner_facilement_les_fonctions_de_securite_FR.zelModule_1_Easy_Determination_of_Safety_Functions_EN.zelModul_1_Sicherheitsfunktionen_einfach_bestimmen_DE.zelModul_2_Sicherheitslogik_einfach_konfigurieren_mit_SAFECONF_DE.zelSpecification Sheet.pdf
