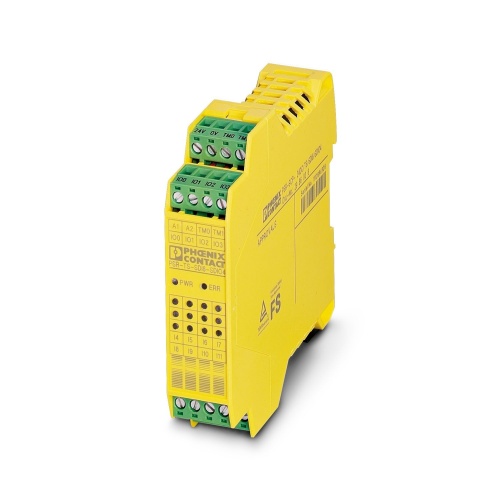

Phoenix Contact 2986038 Extension module PSR-SCP- 24DC/TS/SDI8/SDIO4
Normally In Stock
Code: 73013
PSR-SCP- 24DC/TS/SDI8/SDIO4 Phoenix 2986038 Extension module *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$651.89
Sale Price
$543.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

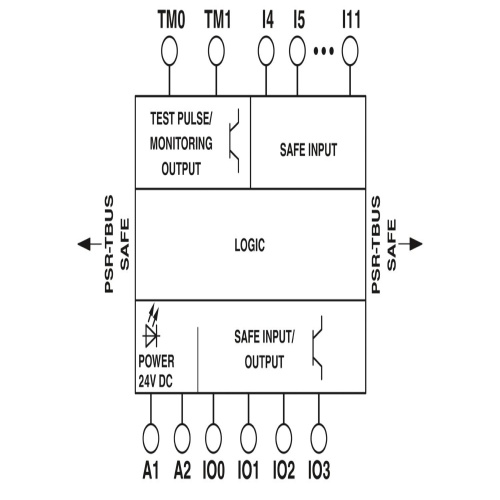

Phoenix Contact 2986038 The PSR-TRISAFE-M input/output extension module features 8 safe inputs and 4 configurable channels that can be set as either safe inputs or outputs, accompanied by 2 clock/alarm outputs. This module meets various safety standards including SIL 3, Cat 4/PL e, EN 50156, and is connected using plug-in screw terminal blocks.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Component
Extension Module
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 2
Safety Relay Supply Voltage
24 Volt
Features
2 alarm outputs or 2 clock outputs (that can be configured using SAFECONF)
Up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
EN 50156
Flexible extension with safe inputs and outputs
Quick startup thanks to comprehensive simulation and test functions
Easy graphical configuration instead of complex programming
Multifunctional use for a wide range of safety functions

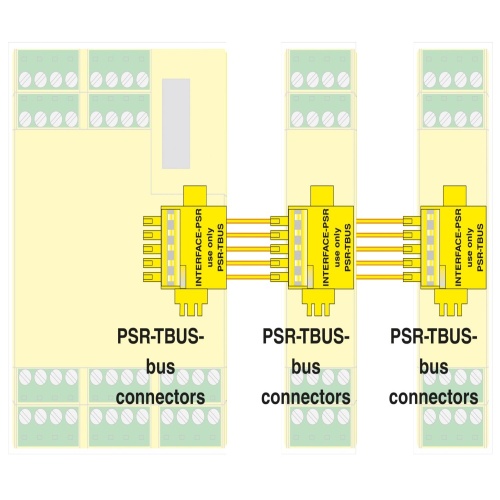

Including PSR-TBUS connector (DIN rail connector) for adapting to the PSR-TRISAFE-M master module
4 safe digital outputs or 4 additional digital inputs (that can be configured using SAFECONF)
8 safe digital inputs
Narrow 22.5 mm housing
